Removal and installation of the crank window in the driver's door - ra72001400190x(0190)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 - A. Sedan, B. Coupe
Preliminary work:
Door liner removed (Removal and installation of the lining on the driver's door ).
Exterior mirror removed (REMOVAL, INSTALLATION, DISASSEMBLING OF EXTERIOR MIRROR ).
Exterior molding with sealing bar on belt line removed.
Inner sealing bar removed (Removal and installation of the inner sealing bar )
A. Sedans

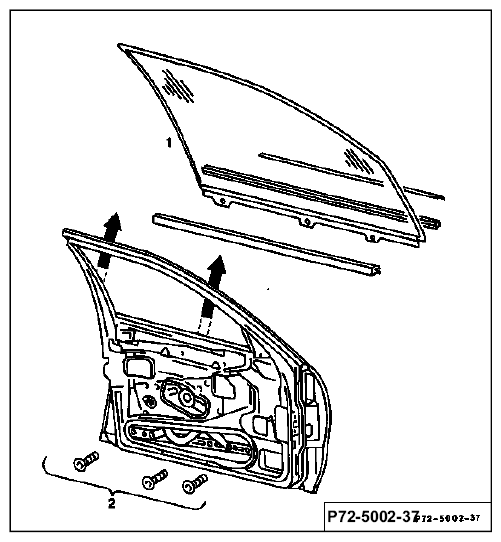

| Crank window (1) | open until screws (2) on window lift bar are accessible through installation opening at bottom. |
| Screws (2) on window lift bar | screw out (3 each), use Torx wrench attachment T30. |
| Crank window (1) | remove upward out of door shaft while tipping window toward front. |
| Crank window (1) | insert into door shaft from outside while tipping window toward front, guide into window guide channels at front and rear and insert into mounting hooks on window lift bar. |
| Screw (2) | on window lift bar, screw in and tighten hand-tight. |
| Sealing channels and molding on door shaft | install. |
| Crank window (1) | close. |
| Crank window adjustment | check, readjust if required (Adjustment of the crank window in the driver's door ). |
| Screw (2) | tighten. |
| Exterior mirror | install. |
| Form piece | glue onto interior door panel. |
| Door liner | install. |
B. Coupes
Door liner removed (Removal and installation of the lining on the driver's door , B)

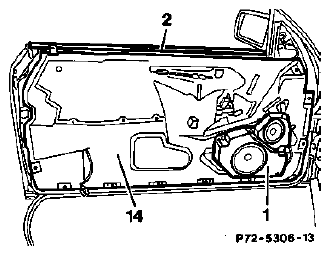

| Loudspeaker housing (1) | remove, install. |
| Door vapor seal (14) | remove, install, replace damaged vapor seal during reassembly. |
| Retaining rail (2) for door liner and sealing rail on inside of door shaft | remove, install. |

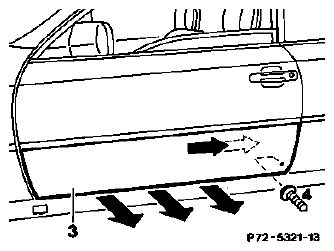

| Outer panel on front door | remove, install. |

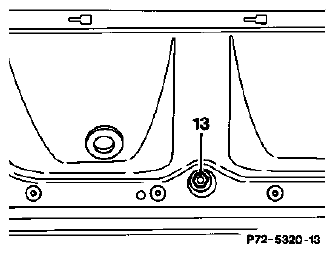

| Rear rubber grommet on front door panelling Nut (13) on bottom bearing bracket for rear | remove, install. |
| window guide rail (7) | screw out, screw in (13 mm). |
| Top screw (arrow) on rear guide rail (7) | screw out, screw in (Torx T30). |

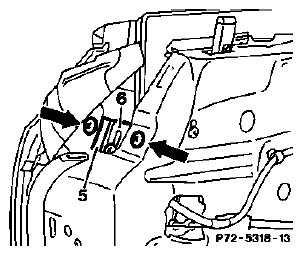

| Retainer (5) and closing wedge (6) | remove, install. |

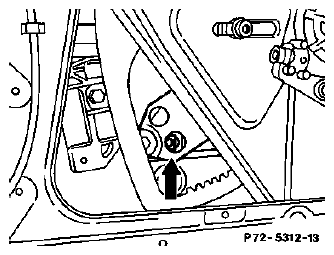

| Screw (arrow) on window lift rail | screw out, screw in, for this purpose close window until screw (arrow) is accessible through installation opening at bottom (use inner Torx attachment T40). |
| Crank window (8) | close half way. |

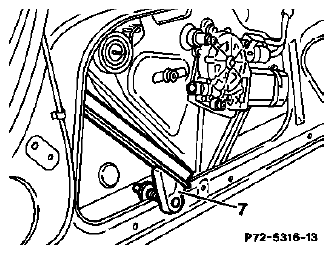

| Guide rail (7) | unhook on bottom bearing bracket, install; for this purpose pivot guide rail (7) top toward rear, then remove guide rail through installation opening. |
| Window lift mechanism | move to position for removing and installing window (8), for this purpose move window or window lift mechanism down until 6 teeth on the toothed segment are visible in the installation opening. |
| Rear window lift arm | remove, hook into window lift rail (arrow). |

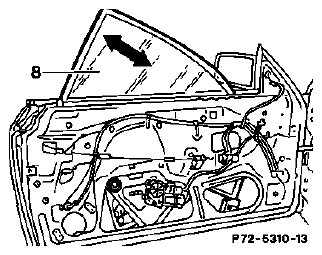

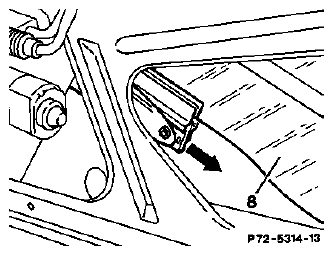

| Crank window (8) | pivot up at rear and move slider on front window lift arm out of window lift bar. |
| Crank window (8) | remove from door shaft toward rear. |

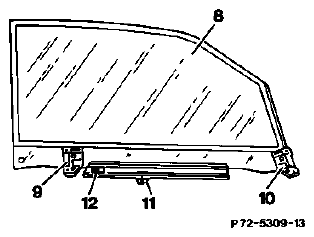

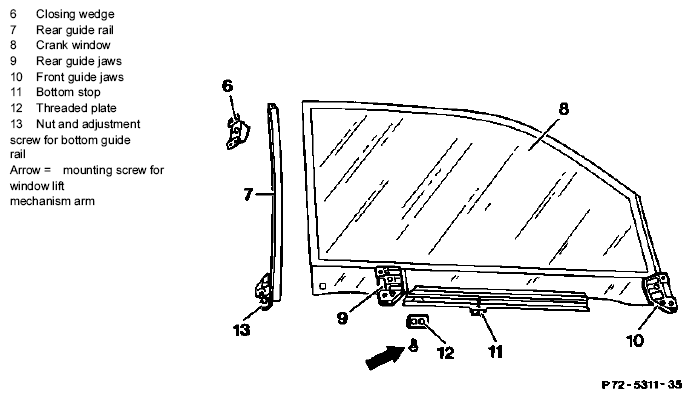

| When replacing window | screw off, screw on guide jaws (9 and 10) and stop (11) on window (8); observe installation position! |

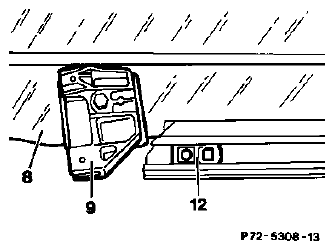

| Threaded plate (12) on window lift rail | remove, when installing secure against moving with friction tape. Observe installation position! |
| Window lift mechanism | move to installation position for window (6 teeth on toothed segment visible at bottom). |

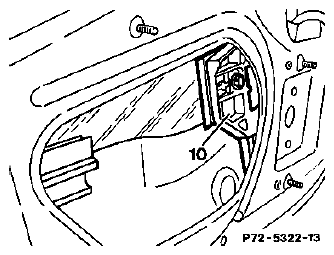

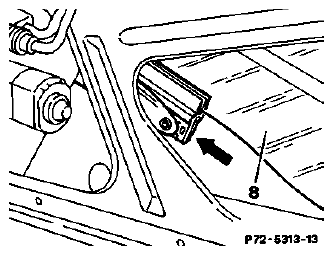

| Crank window (8) | insert from rear into door shaft together with installed guide jaws (9 and 10), while inserting slider for front window lift arm into window lift rail and front guide jaw (10) into guide rail. |
| Rear window lift arm | screw onto window lift rail (threaded plate 12), (inner Torx attachment T40), do not tighten screw. |
| Crank window | close half way. |

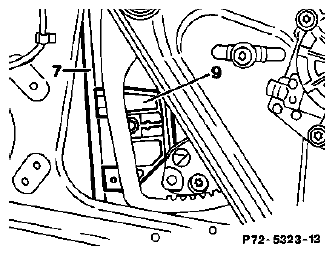

| Guide rail (7) | insert through installation opening and into bottom bearing bracket, simultaneously insert into rear guide jaw (9). |
| Guide rail (7) | fasten at top and bottom. |
| Crank window (8) | open. |
| Retainer (5) with closing wedge (6) | install, however, loosen screw for closing wedge. |
| Crank window | adjust (Adjustment of the crank window in the driver's door , B). |
| Then | install vapor seal, loudspeaker housing, inside sealing rail and door liner. |
