Removal and installation of driver's door window frame molding - ra72001400350x(0350)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

REMOVAL, INSTALLATION, DISASSEMBLING OF EXTERIOR MIRROR .

Removal and installation of the outer sealing bar .

Removal and installation of the driver's door surround .

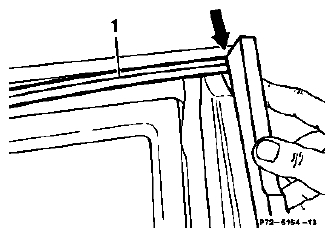

Fig 1: Identifying Driver's Door Window Frame Molding Components (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

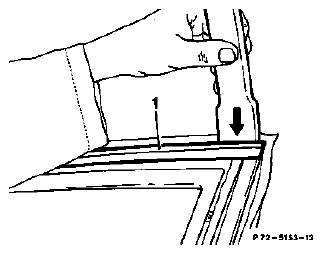

Fig 2: Identifying Driver's Door Window Frame Molding Components (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

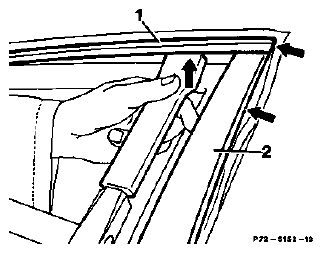

Fig 3: Identifying Driver's Door Window Frame Molding Components (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Window guide rail in area of molding	remove.
Molding (1)	remove with caulking tool, use special tool 116 589 07 59 00.
Molding (1)	install, whilst starting the top rear and aligning molding flush with window frame.
Molding (1)	install with caulking tool, whilst checking the installed position (arrow) to surround.
Surround (2)	install, (Removal and installation of the driver's door surround ).
Reinstall in opposite order.

Special tools

Fig 4: Identifying Special Tool (116 589 07 59 00 67)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
