Removal and installation of the driver's door surround - ra72001400300x(0300)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

REMOVAL, INSTALLATION, DISASSEMBLING OF EXTERIOR MIRROR

Removal and installation of the outer sealing bar

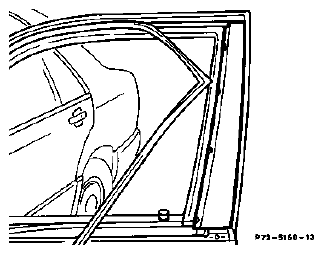

Fig 1: Removing Window Guide Rail

G05437792

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

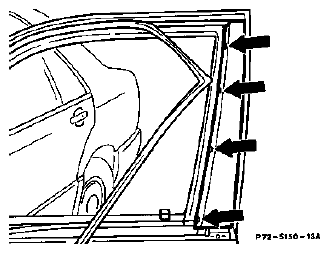

Fig 2: Locating Self-Tapping Screws

G05437793

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

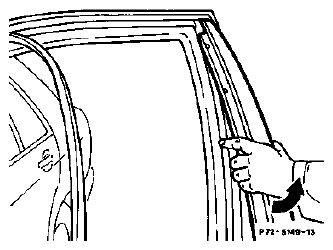

Fig 3: Removing Surround

G05437794

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Installing Surround

G05437795

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

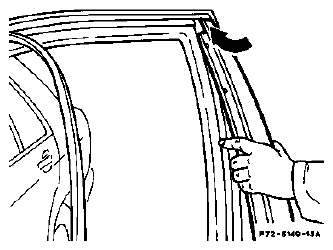

Fig 5: Installing Surround

G05437796

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Locating Self-Tapping Screws

G05437793

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Window guide rail (Fig 1)	partially remove.
Self-tapping screws (Fig 2)	unscrew from surround (4 pieces).
Remove surround (Fig 3)	for this step press glass forward and inner lining to one side using plastic wedge. Pull out lower surround and remove.
Install surround (Fig 4)

Surround 1 = 1st version	installed up to approx. 12/91.
Surround 2 = 2nd version	installed as of approx. 12/91.
Difference, 2nd version:	install lug (arrow) of surround (2) in the sealing frame of the door.
Install surround (5)	coat adhesive rubber lip with soapsuds, first slide in surround at the top (arrow) and press in, whilst pressing to one side and pressing the glass forwards as for the removal of the inner panelling.
Self-tapping screws (Fig 6)	screw in (4 pieces).
Reinstall in opposite order.
