Removing and installing thermal fuse - ra83001405982x(5982)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with auxiliary heater
Previous work:
Molding on front right fender removed.
Front right fender lining removed.
Operation number of operation texts and work units or standard texts and flat rates:
| Ground cable on battery | Disconnect, connect. |

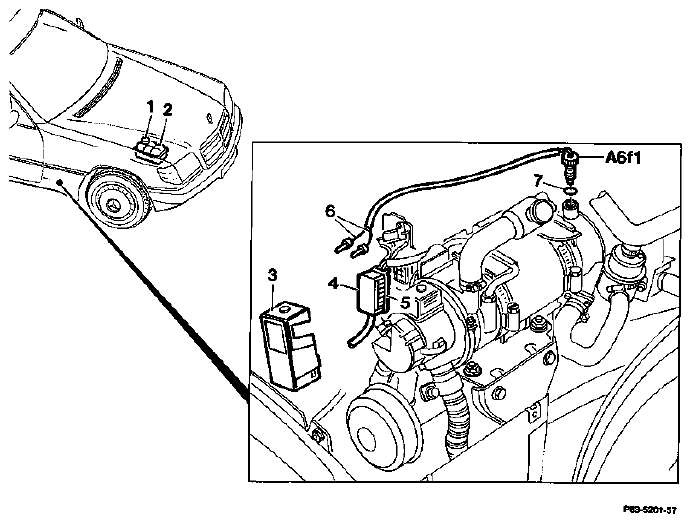

| Pressure in coolant system | Vent by turning sealing cap (1) on coolant expansion tank (2) to 1st lock. |
| Coolant expansion tank (2) | Seal off. |
| Cover (3) | Pull off, push on. |
| Connector (4) with plug | Unclip from holder at heating unit, clip in. |
| Plug cover (5) | Open, close. |
| Cables (6) of thermal fuse (A6f1) | Disconnect and remove from plug housing; insert and route. Blue cable to plug location 11. Blue cable to plug location 12. |
| Thermal fuse (A6f1) | Unscrew. |
| Grommet (7) | Check and moisten with coolant when installing. |
| Thermal fuse (A6f1) | Screw in by hand as far as possible. |
| Coolant circuit with auxiliary heater | Bleed (Bleeding coolant circuit with auxiliary heater ). |
| Auxiliary heater | Check function. |
| Cable color | Heater plug locations | |
|---|---|---|
| bl = Blue | 1 | Glow plug |
| ws = White | 2 | |
| br = Brown | 3 | Combustion air blower |
| vi = Violet | 4 | |
| rt = Red | 5 | Combustion air blower preresistor |
| rt = Red | 6 | |
| ws = White | 7 | Flame control |
| bl = Blue | 8 | |
| br = Brown | 9 | Temperature sensor |
| bl = Blue | 10 | |
| bl = Blue | 11 | Thermal fuse |
| bl = Blue | 12 |
