Removing and installing refrigerant compressor - ra83001400530x(0530)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140, A. Engines 104, 119, B. Engine 120
- Engines 104 and 119
Air conditioner Drain (recycling). Lower engine compartment covering Remove. Ribbed V-belt Slacken and remove (13-342). Torsion bar Disconnect at forward mountings (2 clamps, 4 self-locking nuts). Always replace self-locking nuts and screws after removal.

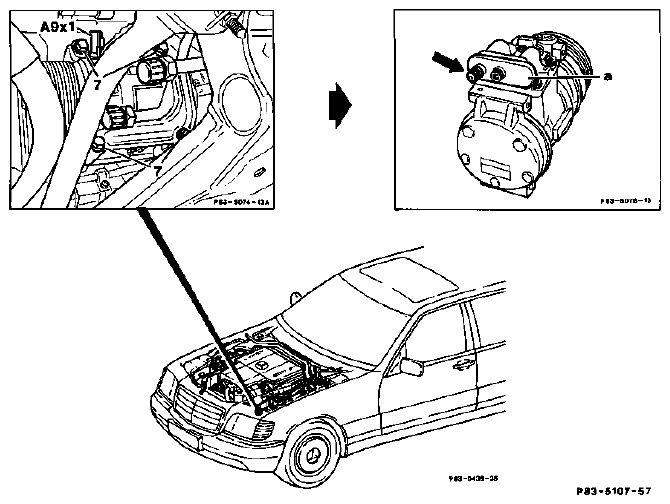

3-pole connector (A9x1) Disconnect. Suction and pressure line Disconnect at pipe group, tighten to 17 ± 3 Nm. - Engine 120
| Battery | Disconnect negative pole. |

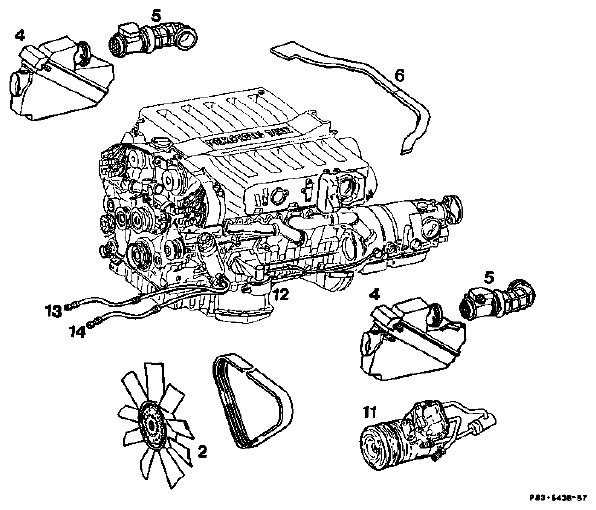

| Both air cleaners (4) with air mass meter (5) | Remove (09-0015) . |
| Air collector box | Remove (Removal and installation of the switchover valve connector block (Y13/2) ). |
| Cable duct (6) on partition wall | Loosen. |
| Front center stiffening (radiator cross member) | Remove (7 screws). |
| Fan and fan shroud (2) | Remove (20-3120) . |
| Ribbed V-belt | Remove (13-3420) . |
| Lower engine compartment covering | Remove (Maintenance manual 61906190). |
| 2 rubber buffers (air cleaner mounting) on frame side members | Remove. |
| Front engine mount (12) left and right | Slacken (01-300). |
| Engine carrier bracket (140 589 01 61 00) | Mount, raise engine. |
| Torsion bar | Disconnect at forward mountings (2 clamps, 4 self-locking nuts) Always renew self-locking nuts and bolts after removal |
| Engine oil lines (13-14) on oil filter housing | Disconnect, seal openings. (Parts set 140 830 01 27). |
| Engine oil lines with bracket on oil pan | Disconnect, seal openings. |
| Hydraulic lines on tandem pump | Disconnect, seal openings. |
| Oil pressure gauge transmitter (B5) | Unscrew. |
| Refrigerant lines on pipe group | Unscrew, seal openings. |
| 3-pole plug connection (A9 X 1) | Disconnect. |
| Pipe group on engine | Remove. To do this unscrew bolt (9). |
| Bolts (7) | Unscrew and remove refrigerant compressor. |
| Connections | Seal off with blanking plate (a), part no. 140 830 01 27. Before installing a new compressor, slowly release pressure at service valve (arrow). |
| Oil level in refrigerant compressor | Correct. New refrigerant compressors are filled with 120 cm3 compressor (160 cm3 in refrigerant compressors for refrigerant R134a). (approved compressor oils, refer to Service Product Specifications, sheet no. 362.) |
| O-rings | Replace if refrigerant compressor is not replaced. |
| Install | In the reverse sequence, noting the following points: if the refrigerant compressor is replaced owing to internal damage (e.g. blockage or damage to the valve plates), the pipe on the compressor and the expansion valve must also be replaced (Removing and installing expansion valve ). It is also necessary to check the function and direction of rotation of the auxiliary fans (clockwise) via the temperature sensor (see diagnosis manual). |
| Receiver dehydrator | Replace (Removing, installing and replacing receiver dehydrator ). |
| Air conditioner | Evacuate and refill. |
| Oil level in engine and transmission | Correct. |
| Oil level for hydraulics | Correct. |
| Leaks | Check. |
| Air conditioner | Switch on and run engine at idle for approx. 4 minutes. |
| Air conditioner | Check function and check for leaks, ensuring that the air outlet temperature at the center outlets does not drop below +5°C. Replace evaporator temperature sensor if necessary (Removing, installing and checking evaporator temperature sensor ). |
Erase fault memory in the control unit (Diagnosis manual - air conditioning). |
| Tightening torque | Nm |
|---|---|
| Front engine mount | 25 |
| Oil lines on air oil cooler | 30 |
| Refrigerant lines on pipe groups | 17 |
| Refrigerant compressor (7 bolts) | 23 |
| Pipe group on refrigerant compressor | 23 |
| Oil pressure switch (B5) | 15 |
