Removing and installing charcoal canister - ra83001400558x(0558)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Operation no. of job texts and work units, standard texts and flat rates:

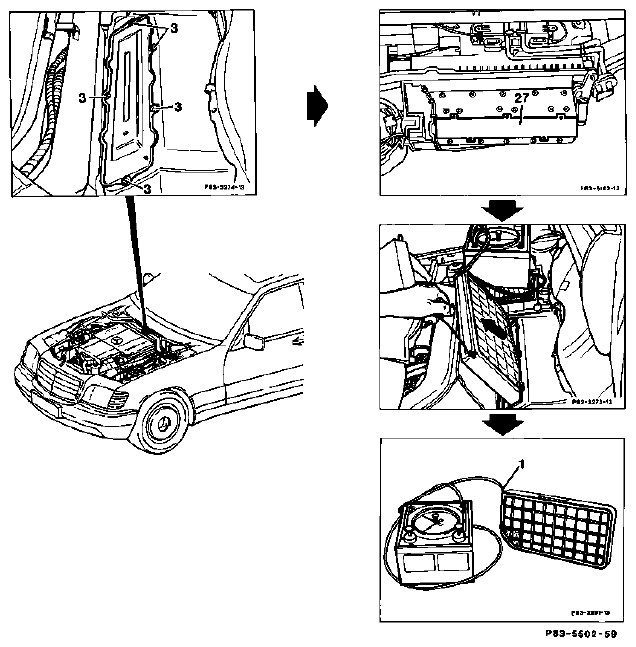

Fig 1: Identifying Charcoal Canister Components
G05440937Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screen wash system Remove (REMOVAL AND INSTALLATION OF WIPER MOTOR ).
Water collector Remove (Removal and installation of the air collector unit and water collector  ).
Dust filter Cover (special tool 140 589 00 98 99).
Cover (Fig 1) Remove, 5 screws (3).
Cover (27) (Fig 1) Remove, 5 screws.
Pneumatic gasket (Fig 1) Evacuate with tester (201 589 13 21 00).
Charcoal canister (Fig 1) Remove upwards (tester remains connected).
To install: evacuate filter and install in opening (pneumatic gasket facing forwards into direction of travel).
Install In reverse sequence.
  IMPORTANT The charcoal canister must not be cleaned.

Special tool

Fig 2: Identifying Special Tools (201 589 13 21 00 00 42 80)
G05440938Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Special Tools (140 589 00 07 00 82)
G05440939Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Special Tools (126 589 03 33 00 54)
G05440940Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Special Tools (140 589 00 98 00 83)
G05440941Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
