Removal and installation of wiper motor - ra82001400680x(0680)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Wiper system removed (82-640).
REMOVAL

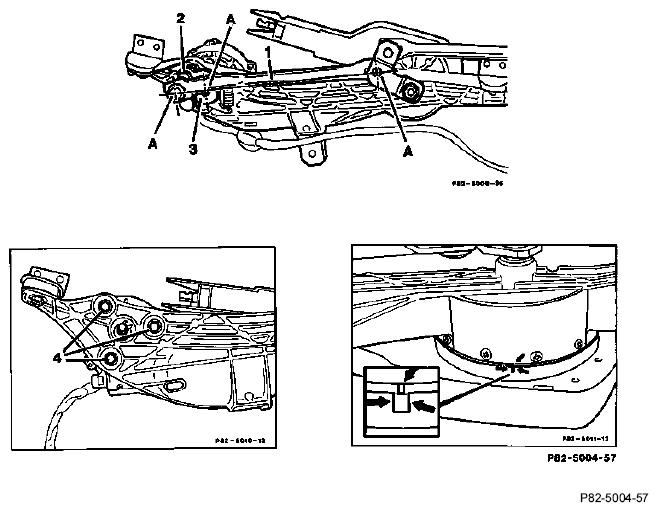

| Wiper head (arrows) | mark (if no marking provided). |
| Linkage (1) of snow guard (2) | press off. |
| Nut (3, waf 24) on wiper motor shaft | unscrew. |
| Snow guard (2) | press off. |
| Wiper motor with bolts (4) | unscrew and take off. |
Installation
NOTE:
Wiper motor must be in park position. Connect to wiring harness if necessary and run to park position.
| Wiper motor with bolts (4) | screw on, 13-17 Nm. |
| Snow guard (2) | fit on. |
| Linkage (1) | fit onto snow guard. |
NOTE:
Markings on wiper head (arrows) must be aligned. The 3 points "A" should form a line.
| Nut (3) on wiper motor shaft | screw on, 55-60 Nm. |
| Linkage (1) | press onto snow guard. |
