Removal and installation of the air volume switch - ra83001400113x(0113)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with automatic heater control
Operation no. of operation texts and work units or standard texts and flat rates:
| Control unit (N18) | Remove, install (Removal and installation of the automatic heater control unit ). |

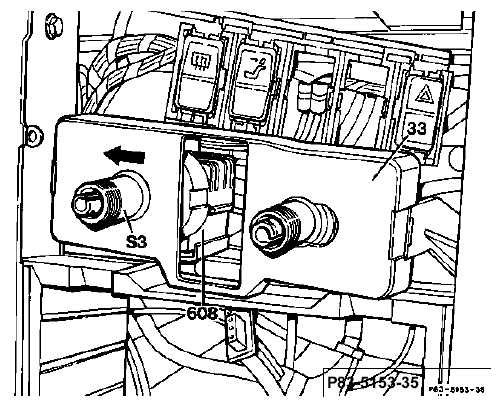

| Bracket (33) | Unclip from the side hangers. |
| Air volume switch (S3) | Push to the left in bracket (33) (arrow) and remove from console. |
| Both vacuum lines | Pull off. |
| 8-pin connector (608) | Pull off. |
| Install | In the reverse sequence. |
