Removal and installation of the automatic heater control unit - ra83001400112x(0112)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with automatic heater control
Operation no. of operation texts and work units or standard texts and flat rates:
| Battery | Disconnect negative terminal. |
| Radio | Remove (REMOVING AND INSTALLING RADIO ) |
| Cover for shift lever | Remove (REMOVAL AND INSTALLATION OF GEAR SHIFT LEVER COVER (MANUAL TRANSMISSION) ), (REMOVAL AND INSTALLATION OF SELECTOR LEVER COVER (AUTOMATIC TRANSMISSION) ). |

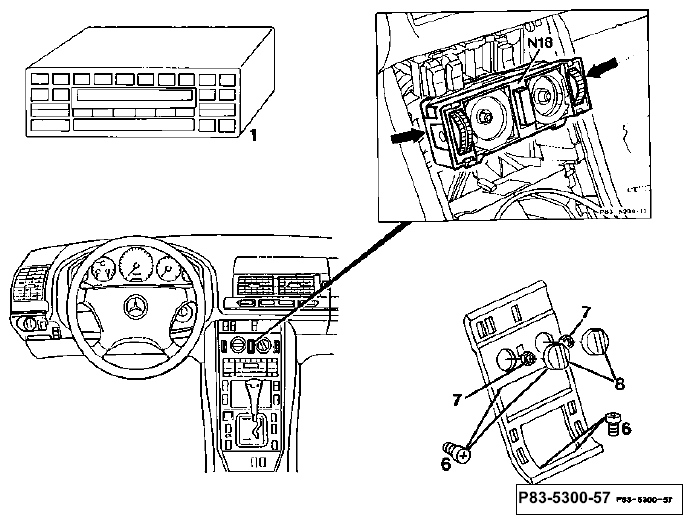

| 4 screws (6) for control unit cover | Unscrew. |
| Operating buttons (8) | Pull off. |
| 2 nuts (7) | Unscrew. |
| Cover | Lift at the base and unclip switch strip. |
| Horizontal cover | Pull out of center console. |
| Control unit (N18) | Pull out until it is possible to unclip the two mounts (arrows). |
| Install | In the reverse sequence. |
