Fresh/recirculated air flap, location/purpose/design/function - GF83.20-P-2104A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 210
MODEL 202 up to 31.8.95 with CODE (305a) Dust filter with CODE (450) Taxi version with CODE (580) Air conditioning or, for USA, Tempmatic A/C with CODE (581a) Air conditioning (automatic)
MODEL 202 as of 1.9.95
MODEL 208
MODEL 170
MODEL 140 as of 1.9.95
MODEL 129 as of 1.6.96
Illustrated on model 210 Design

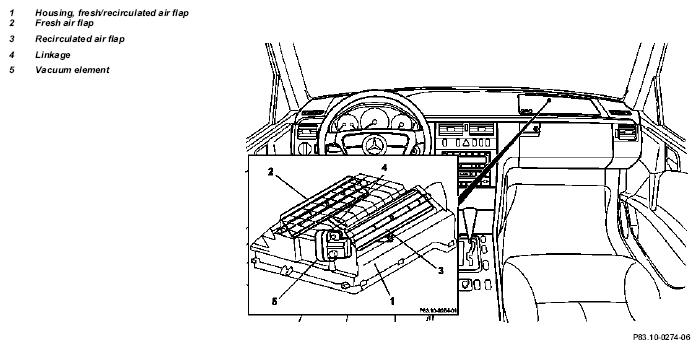

| Fresh/recirculated air flap, location | GF83.20-P-2104-01A | ||
| Fresh/recirculated air flap, Purpose | The fresh/recirculated air flap allows the system to be switched over from fresh air to recirculated air. The fresh air flap (2) and recirculated air flap (3) are consolidated to form one unit in a housing (1) and connected with one another by a linkage (4). | ||
| Fresh/recirculated air flap, function | Model 210 | GF83.20-P-2104-02A | |
| Models 202/208 | GF83.20-P-2104-02E | ||
| Model 170 | GF83.20-P-2104-02G | ||
| Model 140 | GF83.20-P-2104-02S | ||
| Model 129 | GF83.20-P-2104-02B |
