Fresh/recirculated air flap, location - GF83.20-P-2104-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Illustrated on model 210

The fresh/recirculated air flap (2, 3) is located behind the instrument panel on the heater or air conditioning housing.

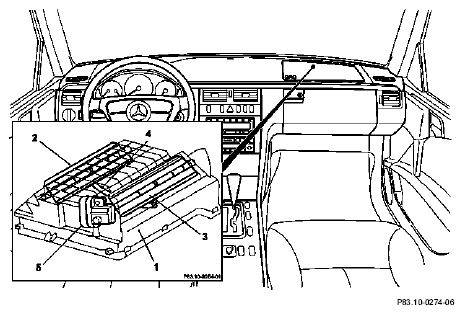

Fig 1: Identifying Fresh/Recirculated Air Flap Location
G04635972Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
