A/C compressor, location/purpose/design/function - GF83.55-P-2100A: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 111, 112, 113, 119, 602, 604, 605, 606, 611, 613 as of 1.7.99 in MODEL 210 with CODE (580) Air conditioning or Tempmatic for USA with CODE (581a) Air conditioning (automatic) with CODE (498) Japanese version A/C compressor 7SB16C

ENGINE 104, 119 in MODEL 140 as of 1.9.95 A/C compressor 7SB16C

ENGINE 603.971 in MODEL 140 as of 1.9.95 up to 31.5.96 A/C compressor 7SB16C

ENGINE 606.961 in MODEL 140 as of 1.6.96 A/C compressor 7SB16C

ENGINE 104, 111, 112, 601, 604, 605, 611 in MODEL 202 as of 1.9.95 with CODE (580) Air conditioning or Tempmatic for USA with CODE (581a) Air conditioning (automatic) A/C compressor 7SB16C

ENGINE 111, 112 in MODEL 208 with CODE (580) Air conditioning or Tempmatic for USA with CODE (581a) Air conditioning (automatic) A/C compressor 7SB16C

ENGINE 111 in MODEL 170 with CODE (580) Air conditioning or Tempmatic for USA A/C compressor 7SB16C

Design

A/C compressor 7SB16C

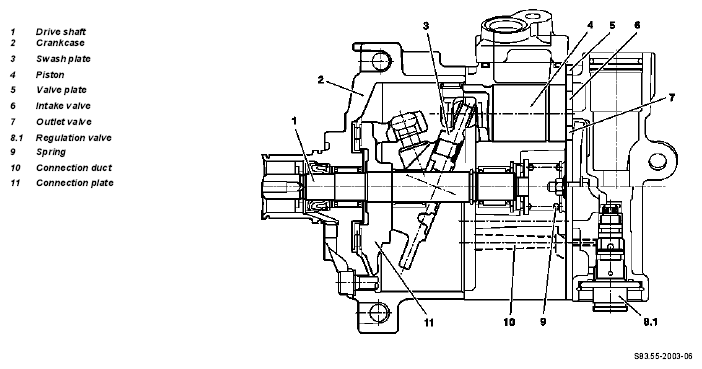

Fig 1: Identifying A/C Compressor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

A/C compressor, location	Model 210, 140	GF83.55-P-2100-01A
	Models 208, 202 as of 09/95	GF83.55-P-2100-01C
	Model 170	GF83.55-P-2100-01G
A/C compressor, purpose	The A/C compressor (A9) is responsible for sucking in and compressing the refrigerant.
A/C compressor, function		GF83.55-P-2100-02A
