A/C compressor, location - GF83.55-P-2100-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Illustrated on model 210

The A/C compressor (A9) is attached to the engine at the front left.

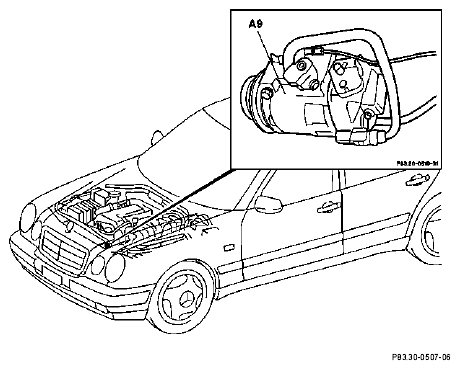

Fig 1: Identifying A/C Compressor Location
G04636061Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
