Remove/install windshield - AR67.10-P-1000DC: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140.06 /07

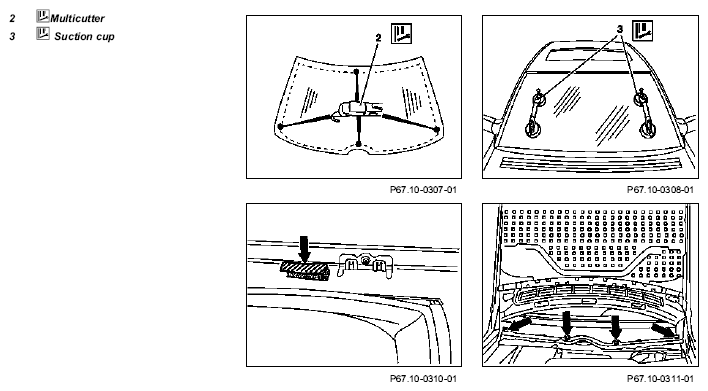

Fig 1: Identifying Windshield Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Prepare glue cartridge		AR67.10-P-1000-07P
		Betagun 2K electric cartridge gun	*WH58.30-Z-1002-20A
			*BR00.45-Z-1015-02A
2	Move engine hood to upright position
3	Mask fender in area of A-pillar and install protective fender cover
4	Remove paneling on A-pillar.		ra88001400850x
5	Remove molding on windshield.		ra67001400120x
6	Remove wiper system		ra82001400640x
7	Remove window molding from side of windshield		ra68001400405x
8	Unclip C-pillar paneling in front area on window molding and roof frame		ra68001400449x
9	Remove inside rearview mirror
10	Remove roof control unit
11	Remove mounting plate for inside rearview mirror
12	Remove sun visors
13	Unscrew screw from mount for sun blind
	Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out glued windows	Always interrupt air supply when inserting or removing blade. Wear protective gloves and eye protection.	AS67.00-Z-0001-01A
14	Remove windshield with cutting blade		AR67.10-P-1000-01D
			Figure
			*WH58.30-Z-1003-20A
15	Remove windshield from body with suction cups (3)		*WE58.40-Z-1029-11A
	Install
16	Prepare body flange for installation of window		AR67.10-P-1501-01P
			Figure
			*WH58.30-Z-1003-20A
17	Replace windshield rubber spacers (arrows)	Remove protective foil only after centering window	AR67.10-P-1000-02D
18	Prepare window for installation		AR67.10-P-1000-03P
19	Align windshield in body opening		AR67.10-P-1000-04D
		Observe gap	*BE67.10-P-1001-01A
20	Remove backing foil from windshield rubber spacers.
21	Apply glue		AR67.10-P-1000-08P
		Betagun 2K electric cartridge gun	*WH58.30-Z-1002-20A
		Height of glue bead approx. 13 mm Install window within 10 minutes before adhesive force of glue starts to decrease
22	Install windshield		AR67.10-P-1503-01K
			*WE58.40-Z-1029-11A
		The curing time is approx. 1 hour from the time the window is installed
		Open crank window in vehicle to prevent the windshield from being pressed outward by air pressure when the door is closed.
23	Install windshield molding		ra67001400120x
24	Install lining on A-pillar		ra88001400850x
25	Install wiper system		ra67001400120x
26	Install window molding on side of windshield		ra68001400405x
27	Install front rear pillar paneling		ra68001400449x
28	Install sun visors
29	Install retaining plate for inside rearview mirror
30	Install overhead control panel
31	Install inside rearview mirror
