Removing and installing the electric window lift on the rear side window - ra67001400415x(0415)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140, Coupe
Preliminary work:
Rear side window removed (Removal and installation of the rear side window )

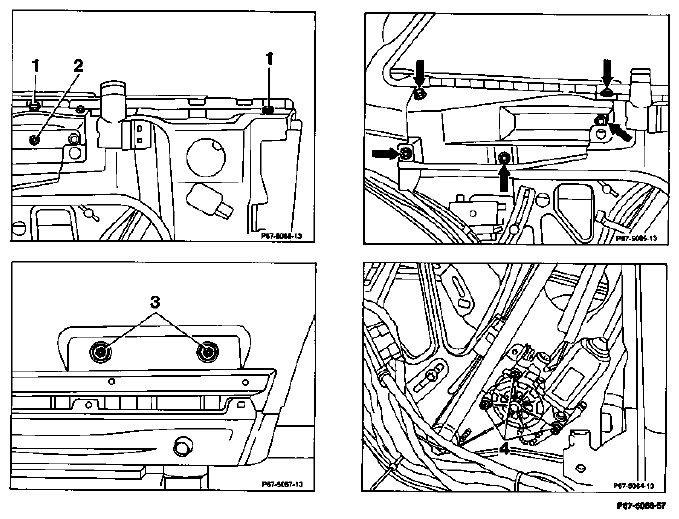

| Screws (1) for top of window lift | screw out (2 each). |
| Screw (2) for plastic cover | screw out. |
| Screws (arrows) on top retaining plate | screw out (5 each). |
| Retaining plate and plastic cover | remove upward. |
| Exterior panelling on rear fender | remove (88-800). |
| Mounting nuts (3) at bottom | loosen. |
| Electrical connections | disconnect on electric window motor. |
| Screws (4) on electric window motor | screw out (3 each). |
| Electric window motor | remove toward inside. |
| Window lift | remove upward. |
| Reinstall | in opposite order. |
| Rear side window | adjust (67-420). |
NOTE:
The motor for the electrically operated window must be resynchronized (basic adjustment). For this purpose close window with electric window switch (not in automatic closing mode) and allow to run against stop for 1 - 2 s.
