Removal and installation of the rear side window - ra67001400400x(0400)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140, Coupe
Preliminary work:
Rear side wall panelling removed (REMOVAL AND INSTALLATION OF THE SIDEWALL PANELING, REAR , do not screw off seat belt swivel fitting on frame side member).
| Cover (2) on installation opening | remove, install (7 screws), disconnect, reconnect electrical plug connections (2 each) on control unit (N42), expose wires. |
| Inside sealing rail (1) on window shaft | remove, install. |
| Rear side window | close until screws (3 each) on window lift bar are visible in installation opening. |

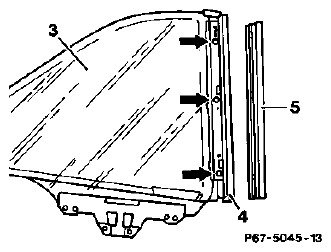

| Screws (arrows) | screw out, screw in (10 mm). |

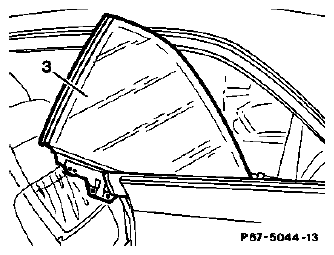

| Rear side window (3) | remove from window shaft upward, insert. |
| Window web (sealing profile) on rear side window | screw off, screw on; for this purpose pull inside cover (5) off toward rear, screw out screws (3 each, 2.5 mm Allen screws). |
| Window web (4) | remove, install. |

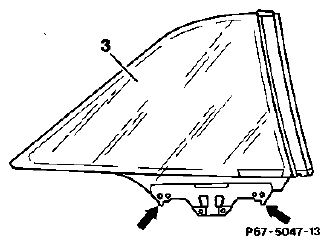

| Rear side window | insert into retaining bar for rear window lift and insert locating pins. |
| Screws (arrows) | screw in together with washers, however, do not tighten. |
| Rear side window | adjust (67-420). |
| Continue to reassemble | in opposite order. |
