Removal and installation of rear seat and backrest - ra91001400171x(0171)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 (Coupe)

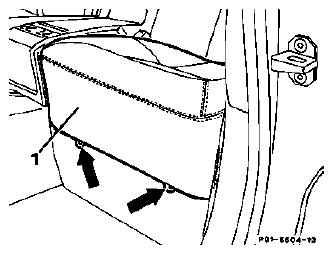

Fig 1: Identifying Rear Seat Cushion

G05441251

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

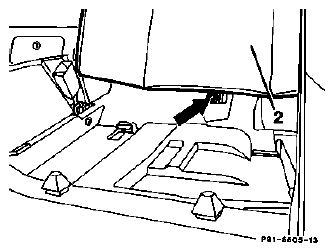

Fig 2: Identifying Rear Backrest

G05441252

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

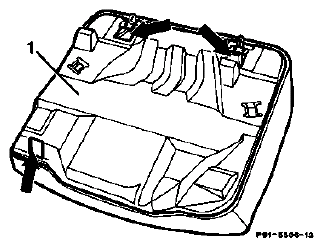

Fig 3: Identifying Rear Backrest

G05441253

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

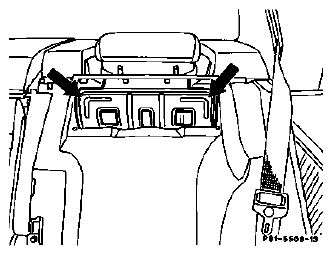

Fig 4: Locating Rear Backrest Into Sheet Metal Tabs

G05441254

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Front seats	move all the way forward and fold backrest forward.
Arresting lever (arrow) on rear seat cushion (1)	press in outward direction, lift rear seat cushion at front and remove. Observe installation note!
Screw (arrow) on rear backrest (2) at bottom	screw out (10 mm).
Rear backrest (2)	slide up and remove, when installing hook rear backrest into sheet metal tabs (arrows) at top and position rear seat belt.
Reinstall	in opposite order.

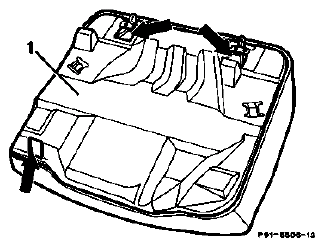

Fig 5: Locating Mounting Points For Rear Seat Cushion

G05441255

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Arrows = mounting points for rear seat cushion

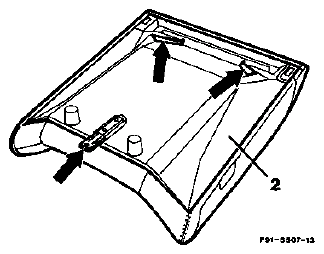

Fig 6: Locating Mounting Points For Rear Backrest

G05441256

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Arrows = mounting points for rear backrest

Installation note

When reinstalling rear seat cushion always ensure that sheet metal tab (arrow) on rear floor engages in cutout in cushion shell.

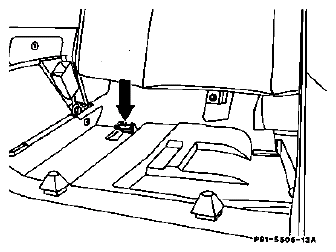

Fig 7: Locating Sheet Metal Tab

G05441257

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
