Measuring wheel carrier (when removed) - AR40.30-P-0425B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

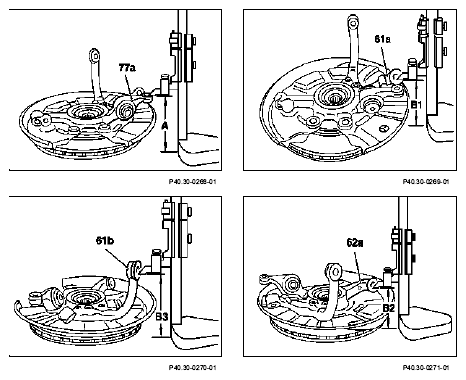

Fig 1: Measuring Wheel Carrier - Model 140

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Remove, install wheel carrier		AR35.20-P-0115A
	Measuring
2	Place wheel carrier for measurement with the wheel hub or brake disk on parallel supports		*WH58.30-Z-1015-12A
3	Measure and note height dimension "A" as comparative measurement with the height marking device	Measure at the flat surface of the torsion bar fixing (77a).	*WH58.30-Z-1016-12A
4	Measure and note height dimension "B1-B3" at the lowest point of the respective bore	The test values are the difference between the height dimension "A" and the height dimensions: "B1" = Thrust arm "B2" = Tie rod "B3" = Torque strut	*BE40.30-P-1001-02A

TEST VALUES - WHEEL CARRIER

Number	Designation			Model 140
BE40.30-P-1001-02A	Difference in height measurement	"B1" "A"	mm	25.9 ±1
		"A" "B2"	mm	56 ± 1
		"B3" "A"	mm	51.1±1
		Refer to illustration		AR40.30-P-0425B

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1015-12A	Parallel bases
WH58.30-Z-1016-12A	Height marking device
