Removing and installing trailer coupling - AR31.10-P-8000S

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140 with CODE (550) Trailer coupling

MODEL 140

Trailer coupling retrofitted

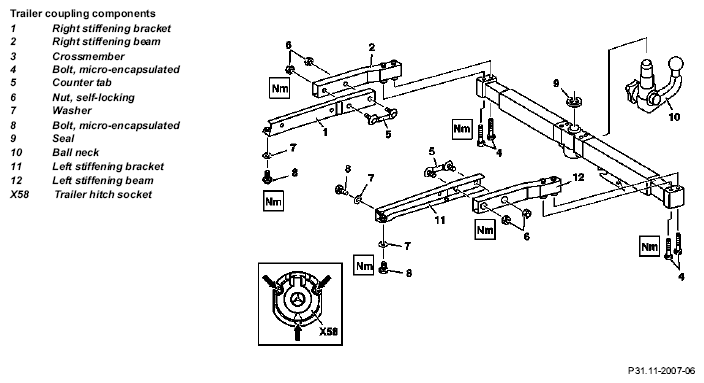

Fig 1: Identifying Trailer Coupling Components
G05438734Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
NOTES Notes on installing a trailer coupling Models 124, 129, 140, 163, 168, 201, 202, 208, 210, 215, 220 AH31.10-P-1000-02B
1 Remove cover of the trunk floor
2 Connect quiescent current retention unit   *WH58.30-Z-1012-09A
3 Remove battery
4 Remove jack
5 Remove car jack fixture
6 Remove spare wheel
7 Remove trim panel of rear center section
8 Remove side part in left and right of trunk
9 Remove rear bumper   AR49.10-P-4940DA
10 Remove rear muffler
11 Remove shield above the rear muffler
12 Unscrew trailer hitch socket (X58) from crossmember IMPORTANT 3 sheet metal bolts, allow socket (X58) to hang down at cable harness.
13 Unscrew bolt (4) 2 bolts on both left and right, at crossmember (3) and remove crossmember (3). IMPORTANTInstallation:  Use new bolts.
TORQUE SPECIFICATION Bolt, crossmember to vehicle *BA31.10-P-1001-01B
IMPORTANT Support crossmember (3).
14 Check seal (9), replace if necessary
15 Remove self-locking nuts (6) at right side compartment and pull out counter tab (5) IMPORTANTInstallation:  use new nuts (6).
TORQUE SPECIFICATION Nut to counter tab *BA31.10-P-1002-01B
16 Remove right stiffening beam (2) from vehicle longitudinal member IMPORTANTInstallation:  The stiffening beam (2) is labeled with an "R".
17 Loosen self-locking nuts (6) at left stiffening beam (12) IMPORTANT Counter tab (11) is on vehicle underbody.
IMPORTANTInstallation:  Use new nuts.
TORQUE SPECIFICATION Nut to counter tab *BA31.10-P-1002-01B
18 Remove left stiffening beam (12) from counter tab (11) and longitudinal member IMPORTANTInstallation:  The stiffening beam (12) is labeled with "L".
19 Unscrew bolts (8) with washer (7) on right and left of vehicle underbody. IMPORTANT The left stiffening bracket (11) is secured by two bolts (8).
IMPORTANTInstallation:  Use new bolts (8).
TORQUE SPECIFICATION Bolt, stiffening bracket to longitudinal member *BA31.10-P-1003-01B
20 Remove counter tab (5)
21 Remove right and left stiffening brackets (1, 11) from trunk
22 Install in the reverse order IMPORTANT Tighten all bolts (4, 8) and nuts (6) finger-tight, align trailer coupling and then tighten with specified torque.
TRAILER COUPLING

Number Designation Models 129, 140, 202, 208
BA31.10-P-1001-01B Bolt, crossmember to vehicle Nm 110
BA31.10-P-1002-01B Nut to counter tab Nm 43
BA31.10-P-1003-01B Bolt, stiffening bracket to longitudinal member Nm 50
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1012-09A Quiescent current retention unit
