Removal and installation of the glove compartment lock - ra68001400130x(0130)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Glove compartment removed (Removal and installation of the glove compartment )
Lock cylinder for glove compartment removed (68-25)

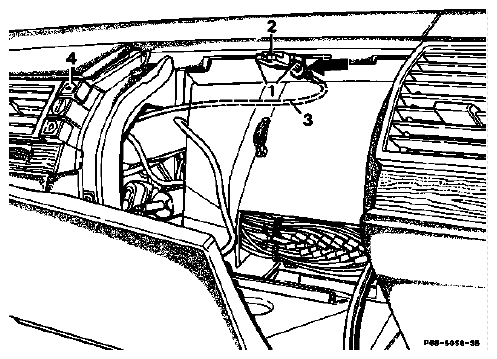

| Screw (1) | screw out (2 each). |
| Lock (2) | remove together with control cable (3). |
| Reinstall | in opposite order. |
| Control cable (3) | adjust with knurled screw until no play is present (arrow). |
| Lock (2) | adjust, then perform function check. |
