Removal and installation of the glove compartment - ra68001400140x(0140)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

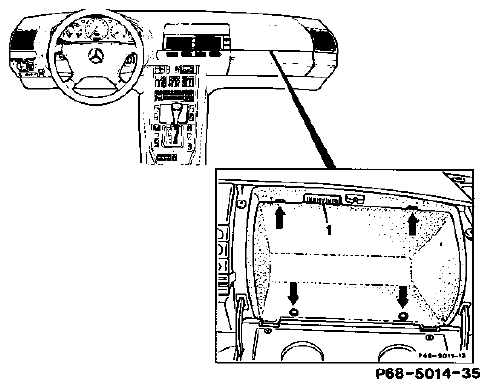

Fig 1: Identifying Glove Compartment Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Glove compartment light (1)	remove and disconnect plug.
Expanding anchors (arrows)	remove (4 each).
Glove compartment	lift with plastic wedge in area of hinges and pull out.
Reinstall	in opposite order.
