Removal and installation of the center console - ra68001400200x(0200)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Cover on gearshift lever removed (Removal and installation of gear shift lever cover (manual transmission) or Removal and installation of selector lever cover (automatic transmission) )

Cover on center console removed (Removal and installation of the center console cover )

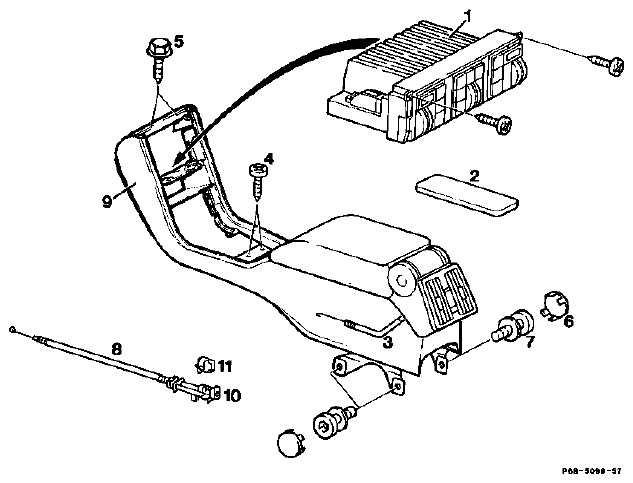

Fig 1: Identifying Center Console Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Control unit (1) for heater and air conditioner	removed.
Insert (2)	removed.
Control cable (3) for rear compartment nozzle	unhook.
Screw (4)	screw out (2 each).
Screw (5)	screw out (2 each, 8 mm).
Driver's and passenger seat	move forward.
Cover (6)	press off on left and right sides of tunnel.
Screw (7)	screw out. 4 each, Allen screws, WAF 6 mm. 25 Nm. When installing note different screw lengths.
Center console (9)	lift at rear, move out at front on instrument panel and remove.
When installing	thread control cable (3) for rear compartment nozzle through opening in air duct housing, observe installation note!
Continue to install in opposite order. Function check	perform.

Installation note

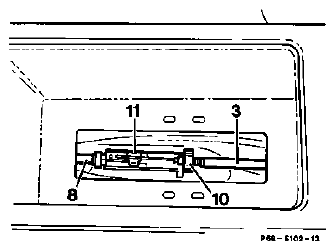

Before clipping in the control cable (3), "close" the rear compartment nozzle and pull the front control cable (8) all the way to the rear. Press the control cable (3) into the sheet metal clips (11) in this position and secure the control cable sleeve with plastic clips (10).

Fig 2: Identifying Control Cable And Sheet Metal Clips

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removal, installation

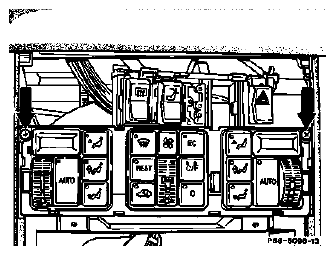

Screw out screws (arrows) on control unit. Disconnect plug connector (2 each), remove control unit.

Fig 3: Locating Screws On Control Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

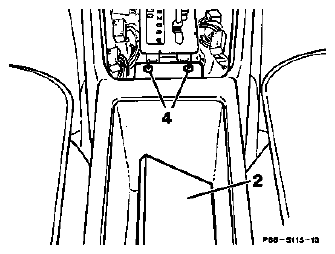

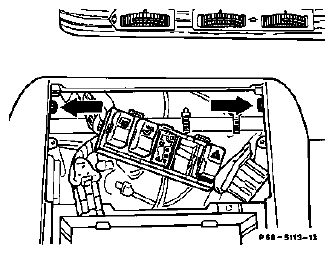

Remove insert (2), screw out screw (4).

Fig 4: Identifying Screw
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

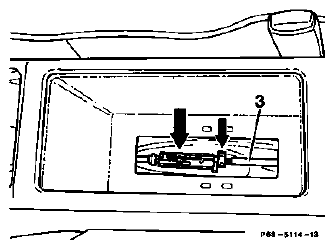

Unhook control cable (3) for rear compartment nozzle (arrows).

Fig 5: Locating Control Cable For Rear Compartment Nozzle
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

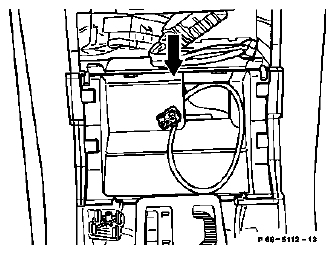

Remove housing shell (arrow).

Fig 6: Locating Housing Shell
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

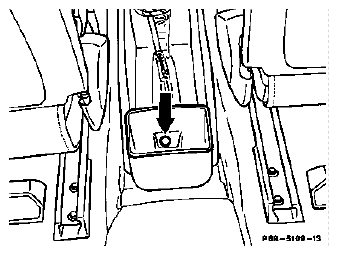

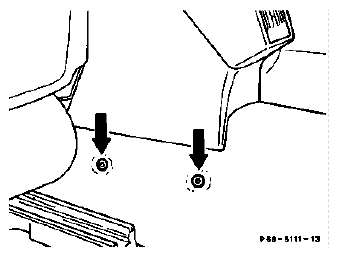

Screw out screws (arrows) (8 mm).
Move driver's and passenger seat forward.
Remove left and right covers on drive shaft tunnel.

Fig 7: Locating Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw out screws (arrows) on left and right sides of drive shaft tunnel.
NOTE: When installing observe different lengths of screws (screw longer screws into left side of drive shaft tunnel)!

Fig 8: Locating Screws On Left And Right Sides Of Drive Shaft Tunnel
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

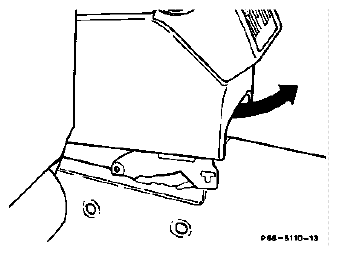

Lift center console at rear, move out at front on instrument panel and remove.

Fig 9: Lifting Center Console
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

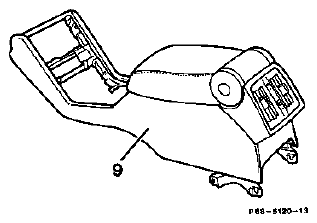

Fig 10: Identifying Center Console
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Center console removed.
When installing route control cable for rear compartment nozzle through opening in air duct housing (arrow).
Observe installation note!
Continue to reinstall in opposite order.
Perform function check.
