Removal and installation of the combination switch - ra54001402800x(2800)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work
Steering wheel removed (46-8240).
Contact spiral removed (46-8300).
Steering angle sensor removed (46-8310)
Cover below instrument panel removed (68-150) .
Operation no. of operation texts and work units or standard texts and flat rates:
Cars without cruise control 54-2800
Cars with cruise control 54-2801

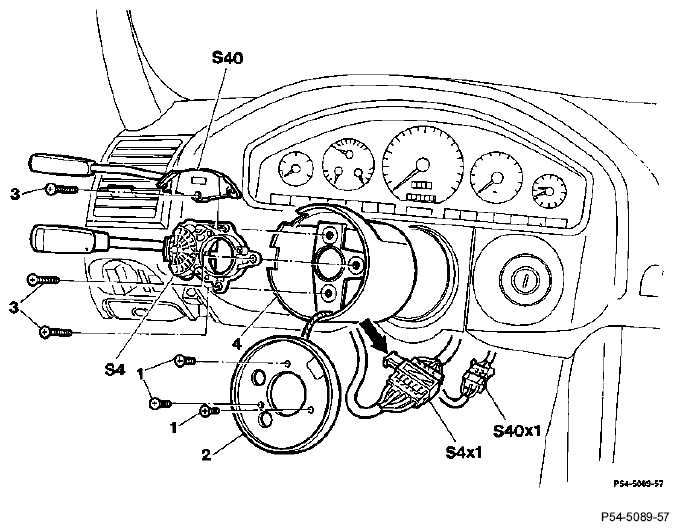

| Ground cable at battery | disconnect, connect. |
| Screws (1) if airbag fitted | unscrew, screw in. |
| Cover plate (2) if airbag fitted | take out, insert. |
| (up to approx. 01/93) | |
| Screws (3) | unscrew, screw in. |
| Combination switch connector (S4x1) | unplug; push the bar (arrow) to do this; plug together, push back bar to do this. |
| Cruise control switch connector (S40x1) if cruise control fitted | unplug, plug in. |
| Casing tube covering (4) | pull off, fit on. |
| Cruise control switch (S40) | |
| if cruise control fitted | take out of casing tube covering (4), insert. |
| Combination switch (S4) | take out of casing tube covering (4), insert. |
| After connecting the battery perform the following work | Set clock in instrument cluster. Code radio (82-7502). |
| If applicable code auto pilot system (APS) and load language (82-7502) Synchronize power windows (FUNCTION OF CONVENIENCE CONTROL (POWER WINDOWS AND TILTING/SLIDING ROOF) ) If applicable set timer for stationary heater. On vehicles with ADS reactivate steering angle sensor (32-0600) . |
