Remove/install multi-disk brake B1 and oil pump - AR27.50-P-0721A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6
Modification notes
| 2.8.00 | Figure modified from 8 Nm to 10 Nm | Value modified in BA27.40-P-1004-01A for transmission 722.6 | *BA27.40-P-1004-01A |
| Dismantle | |||
|---|---|---|---|
| 1 | Remove multi-disk clutch K1, K2 and K3 | AR27.50-P-0621A | |

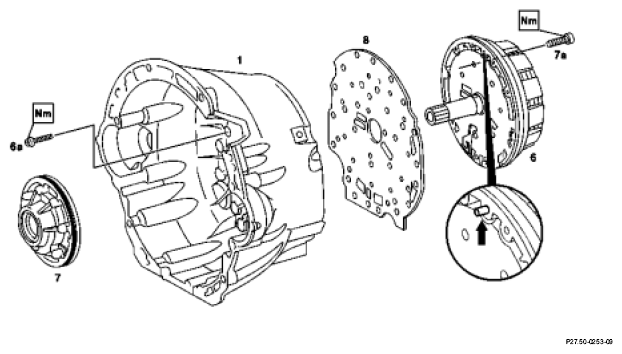

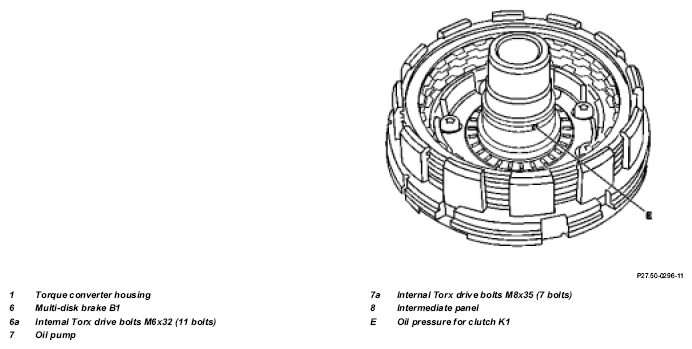

| 2 | Unscrew Torx socket bolts (7a) and remove oil pump (7) | ||
| Dismantle and assemble oil pump | AR27.50-P-0720-01A | ||
| 3 | Unscrew Torx socket bolts (6a) and remove multi-disk brake B1 (6) from converter housing | ||
| Dismantle and assemble multi-disk brake B1 | AR27.50-P-0870A | ||
| 4 | Detach intermediate panel (8) from converter housing (1) | Use a suitable tool for loosening |
|
| Remove/install multi-disk brake B2, multi-disk pack B3 and park pawl gear | AR27.50-P-0781A | ||
| Assembling | |||
| 5 | Place intermediate panel (8) on converter housing (1) and align | ||
| 6 | Securely tighten multi-disk brake B1 (6) on converter housing (1) | ||
| *BA27.40-P-1004-01A | |||
| 7 | Install oil pump (7) and securely tighten | *BA27.40-P-1003-01A | |
| 8 | Install multi-disk clutch K1, K2 and K3 | AR27.50-P-0621A |
| Number | Designation | Transmission 722.6 except 722.660/661/66 2/663/666/674 | |
|---|---|---|---|
| BA27.40-P-1003-01A | Bolt, oil pump with multi-disk brake B1 to torque converter housing | Nm | 20 |
| BA27.40-P-1004-01A | Bolt, multi-disk brake B1 to converter housing | Nm | 10 |
