Dismantling and assembling clutch K1 - AR27.51-P-0800A: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.5

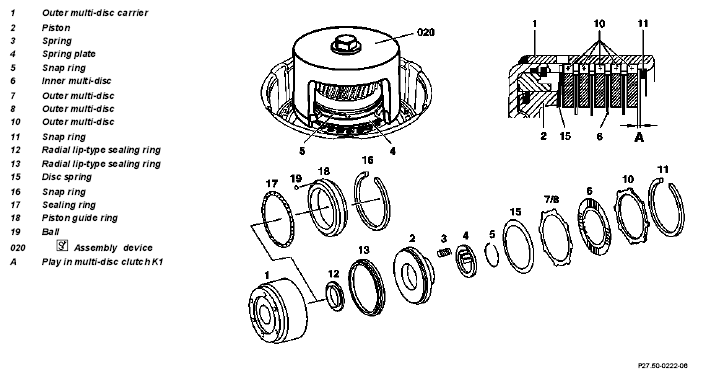

Fig 1: Identifying Transmission Dismantling And Assembling Clutch K1
G04679491Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
DISASSEMBLING Disassembly
1 Remove snap ring (11) from outer multi-disc carrier (1)
2 Take out disc assembly (6, 7, 8 and 10) and disc spring (15) IMPORTANT Check inner multi-discs for signs of scorching and wear Immerse new inner multi-discs in ATF oil for approx. 1 hour before installing
3 Fit assembly device (020) on spring plate (4) and compress until snap ring (5) is exposed SPECIAL TOOL Assembly device Figure
4 Remove snap ring (5)
5 Remove spring plate (4) and springs (3) IMPORTANT Note number of springs.
Do not confuse the springs from clutch K1 and clutch K2
6 Pull piston (2) out of outer multi-disc carrier (1)
7 Remove radial lip-type sealing rings (12/13) from piston NOTES Check radial lip-type sealing rings and replace if necessary
8 Remove snap ring (16) from outer multi-disc carrier (1)
9 Remove piston guide ring (18)
10 Remove sealing ring (17)
ASSEMBLING Assembly
11 Insert new sealing ring (17)
12 Insert piston guide ring (18)
13 Install snap ring (16) in outer multi-disc carrier (1)
14 Install piston K1 in outer multi-disc carrier   AR27.51-P-0800-01A
    SPECIAL TOOL Sleeve Figure
    SPECIAL TOOL Sleeve Figure
15 Install spring plate (4) and springs (3)
16 Fit assembly device (020) on spring plate (4) and compress until groove of snap ring (5) is exposed SPECIAL TOOL Assembly device Figure
17 Install snap ring (5) IMPORTANT Check for proper seating
18 Install disc spring (15) and disc assembly (6, 7, 8 and 10) in outer multi-disc carrier (1) IMPORTANT Place bulge of disc spring on piston Note sequence of clutch discs!
19 Insert snap ring (11) IMPORTANT After installing, use a screwdriver to press the snap ring upwards around its entire circumference
MEASURING Measuring
20 Use a feeler gauge to measure play "A" and adjust if necessary with the snap ring (11) IMPORTANT Snap rings are available as replacement parts in thicknesses of 2.0, 2.5 and 3.0 mm Additional correction with the inner multi-discs is only necessary if the specified play "A" cannot be achieved with the snap ring
Inner multi-discs are available as replacement parts in thicknesses of 4.5 and 5.0 mm		 *BE27.51-P-1002-01A
TEST VALUES FOR MULTI-DISC CLUTCH

Number Designation Transmission 722.5
BE27.51-P-1002-01A Play in multi-disc clutch K1 mm 0.7 - 1.3
Fig 2: Identifying Sleeve (126 589 02 14 00)
G04679492Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Sleeve (126 589 10 14 00)
G04679493Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Sleeve (140 589 00 14 00)
G04679494Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Assembly Device (201 589 12 43 00)
G04679495Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
