Emptying and filling pressure oil system - AR32.30-P-0630A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140 as of 1.6.94, 210 with CODE (217a) Self-levelling suspension on rear axle with ADS with CODE (480) Level control system at rear

MODEL 202, 203.2, 208 with CODE (480) Level control system at rear

Model 140

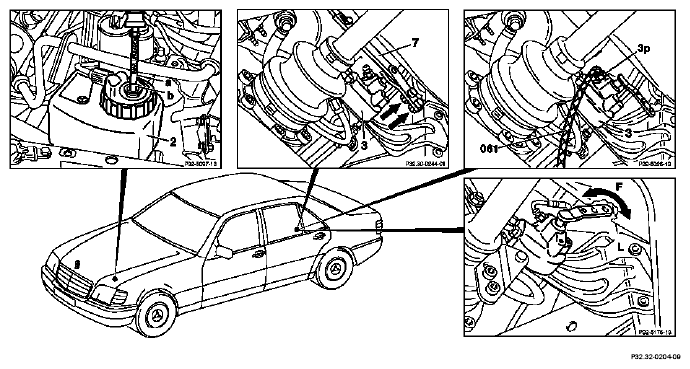

Fig 1: Identifying Emptying And Filling Pressure Oil System (Model 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models 202, 208

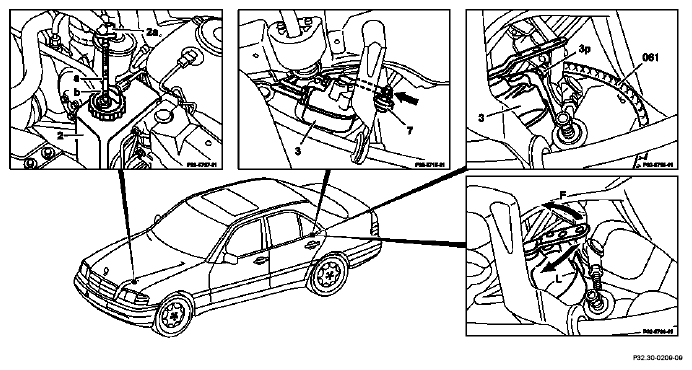

Fig 2: Identifying Emptying And Filling Pressure Oil System (Models 202, 208)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 203.2

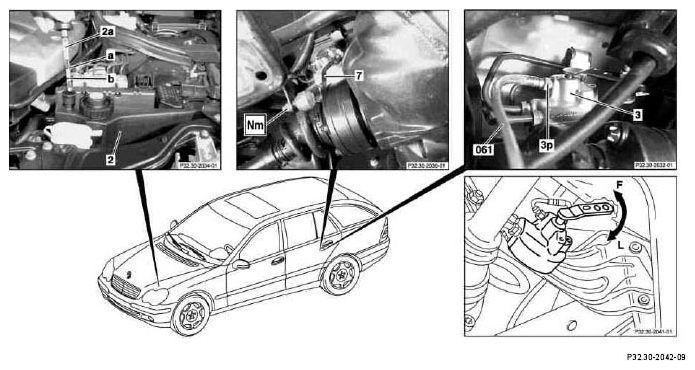

Fig 3: Identifying Emptying And Filling Pressure Oil System (Model 203.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

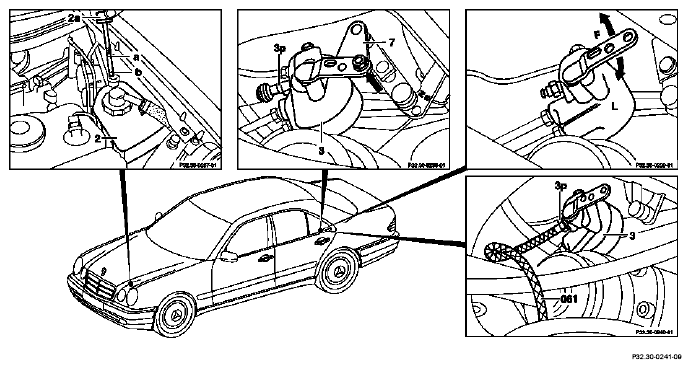

Fig 4: Identifying Emptying And Filling Pressure Oil System (Model 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Draining
	General notes for working on vehicles with level control/ADS	All models with Code 216b, 216c, 217a, 480	AH32.00-P-0002-01A
1	Detach connecting rod or connecting linkage (7) from level controller lever (arrows)
1.1	Remove linkage rod for suspension-control module/torsion bar at ball joint	Model 203.2
2	Detach torsion bar connecting rod from torsion bar	Model Series 202, 208	AR32.30-P-0630-01A
	Press torsion bar up	Improves access to drain plug in suspension-control module (3p)
3	Attach oil drain hose (061) to oil drain plug (3p) on level controller (3)	Model Series 140, 210, 203.2 at connection "S2" Model Series 202, 208 at connection "A" Note technical modifications on Model 140 with ADS ↓
	Level controller oil drain plug	Model Series 140 with ADS starting 01.10.92	BT32.30-P-9209-01A
	Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid.	Release the pressure in the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
4	Open oil drain plug (3p) slowly and collect the oil in a clean container	The oil collected can be re-used.
	Close oil drain plug (3p) again		*BA32.30-P-1002-03A
	Refill
5	Fill reservoir (2) with fluid	Only re-use clean oil
		Funnel	Figure
		Model Series 140, 202, 203.2, 208, 210	*BF32.30-P-1001-01A
6	Push level controller lever to "Fill" position (F)
	Risk of accident. Accidents may result if the vehicle starts off unintentionally with the engine running. Risk of injury as working around the engine during start-up or while running may result in contusions and burns	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
7	Start engine and run at moderate speed for approx. 60 seconds	The system bleeds itself automatically. Installation: Ensure that there is sufficient oil in the reservoir. The pump must never be allowed to draw in air.
	Switch off engine
8	Push level controller lever into the "Empty" (E) position.	The suspension lever must remain in this position for 60 seconds.
9.1	Connect linkage rod or relay linkage (7) to suspension-control module lever (arrows)	MODEL 140, 202, 208, 210 Replace self-locking bolts and nuts.
9.2	Connect linkage rod for suspension-control module/torsion bar at ball joint	Model 203.2
10	Place the vehicle on its wheels and push it up and down firmly several times	The vehicle level adjusts itself.
11	Check and correct oil level in oil reservoir	MODEL 140, 202, 203.2, 208	AP32.30-P-3211BA
		Model 210	AP32.30-P-3211BB

Rear axle torsion strut

Number	Designation		Model 202 without level control	Model 202 with level control system
BA32.20-P-1001-04C	Nut, connecting rod to torsion strut	NM	30	30

Rear axle torsion strut

Number	Designation		Model 208 without ride-height control	Model Series 208 with level control system
BA32.20-P-1001-04C	Nut, connecting rod to torsion strut	NM	30	30

Rear axle level controller

Number	Designation		Model Series 203.2 with self-leveling suspension
BA32.30-P-1004-03A	Screw or nut on suspension-control module lever, suspension-control module on bracket	NM	10

Rear axle level controller

Number	Designation			Model Series 140 with ride-height control/ ADS	Model 202 with level control system
BA32.30-P-1002-03A	Oil drain plug on level controller (reference value)	M10 x 1	NM	14	14

Rear axle level controller

Number	Designation			Model Series 203.2 with self-leveling suspension	Model 208 with level control
BA32.30-P-1002-03A	Oil drain plug on level controller (reference value)	M10 x 1	NM	14	14

Rear axle level controller

Number	Designation			Model 210 with level control / ADS
BA32.30-P-1002-03A	Oil drain plug on level controller (reference value)	M10 x 1	NM	14

Level control system

Number	Designation			Model 140 with level control / ADS/ASD	Model 202 with level control /ASD
BF32.30-P-1001-01A	Filling quantity	Level control, when refilling system	Liter	≈ 2	≈ 2
		Specifications for Operating Fluids	Sheet	BB00.40-P-0343-00A	BB00.40-P-0343-00A
		Specifications for Operating Fluids	Sheet	-	-

Level control system

Number	Designation			Model Series 203.2 with self-leveling suspension	Model 208 with ride-height control
BF32.30-P-1001-01A	Filling quantity	Level control, when refilling system	Liter	≈ 3.5	≈ 2
		Specifications for Operating Fluids	Sheet	-	BB00.40-P-0343-00A
		Specifications for Operating Fluids	Sheet	BB00.40-P-0344-00A	-

Level control system

Number	Designation			Model 210 with level control system/ADS
BF32.30-P-1001-01A	Filling quantity	Level control, when refilling system	Liter	≈2
		Specifications for Operating Fluids	Sheet	-
		Specifications for Operating Fluids	Sheet	BB00.40-P-0344-00A

Fig 5: Identifying Funnel (126 589 12 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Ring Wrench (116 589 00 17 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
