Removing and installing front right exhaust manifold - AR14.10-P-4035F
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 120.98
Showing engine 120.980/981

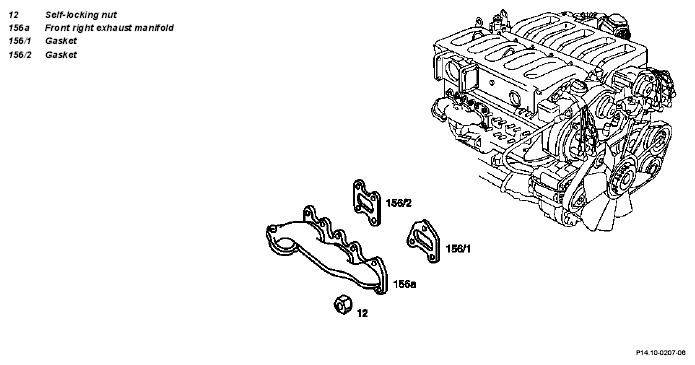

Fig 1: Identifying Front Right Exhaust Manifold Remove/Install Components - Showing Engine 120.980/981
| Fig. item, etc | Work instructions | ||
|---|---|---|---|
| Removing and installing complete exhaust system | AR49.10-P-7000F | ||
| Removing and installing generator | if assembly is difficult Refer to Repair Instructions, Electrical System Model 140 work No: 15-5032 |
||
| Removing and installing air pump | if assembly is difficult | AR14.30-P-7251F | |
| Guide tube for oil dipstick | loosen and turn to one side | ||
| Air injection pipe on cylinder head and on engine mount | unscrew and push to one side | ||
| Air filter for air pump with hoses | remove | ||
| 12 | Self-locking nuts | ||
| *BA14.10-P-1001-01B | |||
| 156a | Exhaust manifold | If necessary after checking ↓ |
|
| Replace riveted nuts in exhaust manifold | AR49.10-P-5531-01DA | ||
| 156/1, 156/2 | Gaskets | *BR00.45-Z-1010-01A |
| Number | Designation | Engine 120 | |
|---|---|---|---|
| BA14.10-P-1001-01B | Exhaust manifold nut | Nm | 30 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-010-01A | Sealant | A 001 989 25 20 |
