Replacing timing chain - AR05.10-P-7601AO: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120

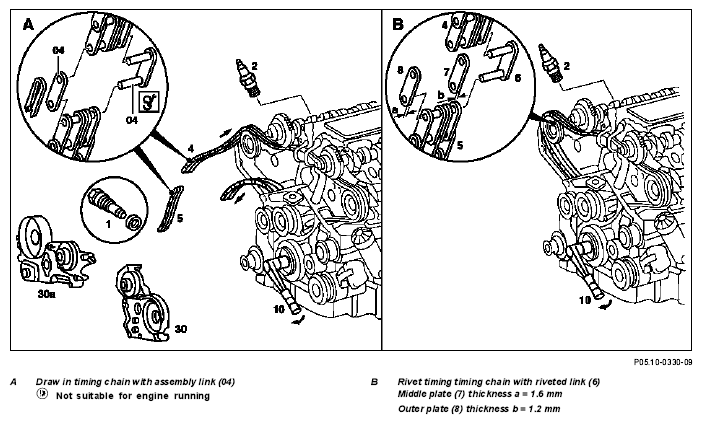

Fig 1: Identifying Timing Chain Components - Engine 120

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Remove front covers at top	AR01.30-P-5703AO
2	Remove chain tensioner	ra05001203100x
3	Remove spark plugs
4	Separate timing chain	AR05.10-P-7601-01AO
		Figure
		Figure
		Figure
		Figure
5	Draw in timing chain, rivet	AR05.10-P-7601-02AO
		Figure
		Figure
		Figure
		Figure
6	Install in the reverse order
