Removing and installing valve springs and/or valve stem seals - AR05.30-P-3500AO

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120

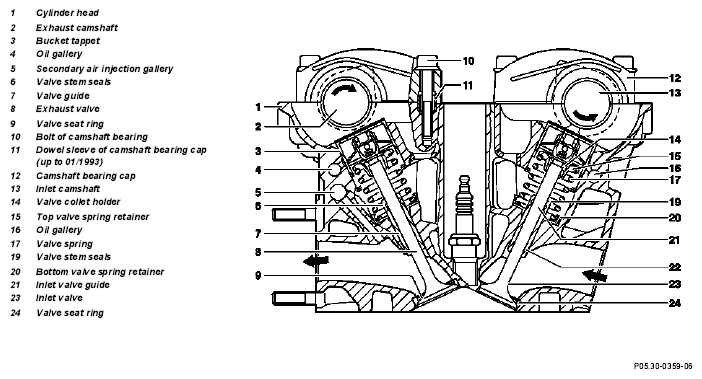

Fig 1: Identifying Valve Springs And Valve Stem Seals Remove/Install Components
G04677386Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
1 Remove camshaft   AR05.20-P-6992AO
2 Remove spark plugs
3 Remove bucket tappets (3) IMPORTANT Only on cylinder to be processed ra05001202110x
4 Remove valve springs and valve stem seals   AR05.30-P-3510-02AO
    SPECIAL TOOL Fig 2
    SPECIAL TOOL Fig 7
    SPECIAL TOOL Fig 3
    SPECIAL TOOL Fig 4
    SPECIAL TOOL Fig 5
    SPECIAL TOOL Figure
    SPECIAL TOOL Fig 8
    SPECIAL TOOL Figure
    COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1015-05A
5 Install in the reverse order
Fig 2: Identifying Drift (104 589 01 43 00)
G04677387Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Assembly Board (111 589 02 59 00)
G04677388Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Magnetic Finger (116 589 06 63 00)
G04677389Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Retaining Lock (602 589 00 40 00)
G04677390Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Pliers (606 589 00 37 00)
G04677391Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Drift (119 589 00 43 00)
G04677392Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Thrust Piece (111 589 25 63 00)
G04677393Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 9: Identifying Valve Assembly Tools Case (111 589 25 61 00)
G04677394Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1015-05A Cylinder leakage testing unit
