Removing and installing guide rail in crankcase - RA05001193400X(05-3400)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Timing case cover removed (01-2100) .
Operation no. of operation texts and work units or standard texts and flat rates 05-8424
Engine 119.97

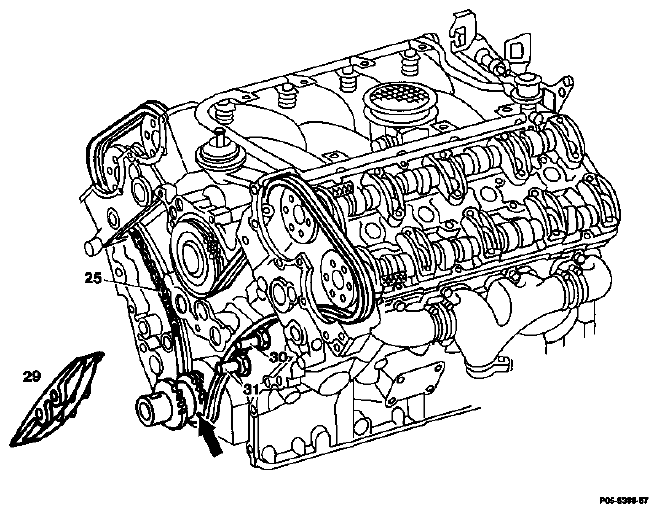

| Crankshaft sprocket (1) | mark relative to timing chain (25) with coloured marking (arrow). |
| Guide rail (29) | pull off from bearing pin (30) and (31). |
| Guide rail (29) | install, pay attention to coloured markings; check basic position of camshaft if necessary (05-2230) . |
