Checking basic position of camshafts - RA05001042230X(05-2230)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Cylinder head cover removed (01-0500) .
Fan shroud and fan shroud ring removed (20-3400)
| Cylinder 1 | position to ignition TDC. |

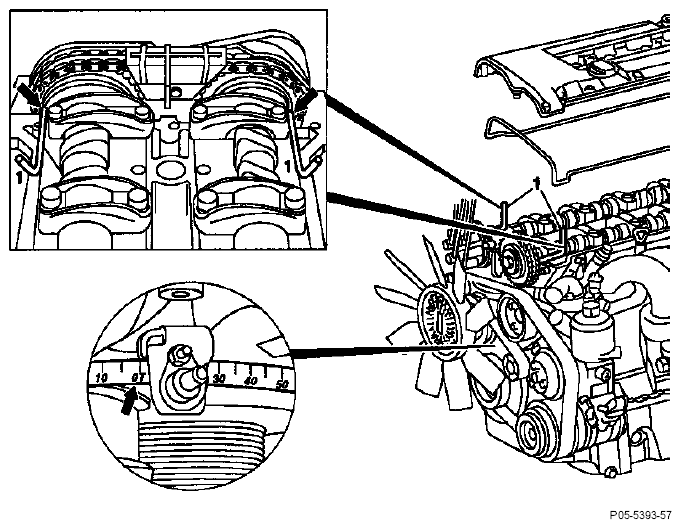

| To do this | rotate crankshaft until the TDC marking on the vibration damper and the TDC pointer (arrow) are aligned (01-0120) . |
| 4 mm Ø holes in the camshaft flanges (arrows) | must touch the top edge of the cylinder head, except at AMG engines. Insert pins (1) into holes (arrows) for this step. Camshaft adjuster must be in "retarded" position. Inlet camshaft rotated in opposite direction of rotation of engine. Inlet camshaft sprocket rotated in direction of rotation of engine as far as the stop! |
