Removing and installing friction rail in crankcase - RA05001043360X(05-3360)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Timing case cover removed (01-2100) .

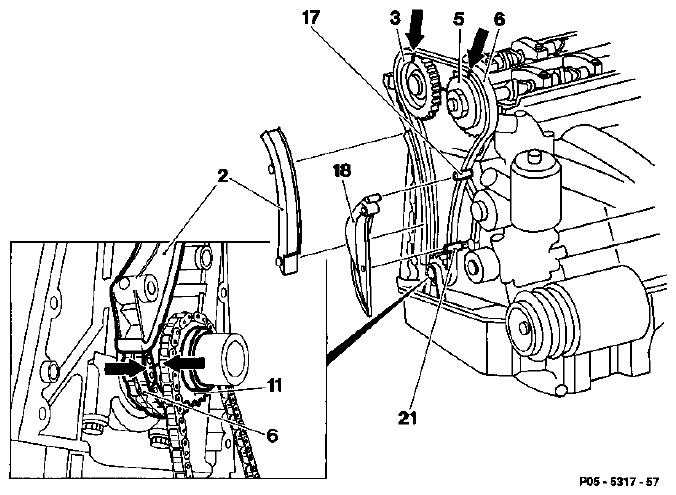

Engine 104.94/104.99
| Crankshaft sprocket (11) | mark relative to timing chain (6) with a coloured marking (arrows). |
| Tensioning rail (2) | remove, install (05-3300) . |
| Timing chain (6) at camshaft sprockets (3) and (5) | lift off, fit on. Pay attention to coloured marking (arrows). |
| Guide rail (18) at bearing pins (17) and (21) | pull off, fit on. Pay attention to coloured marking (arrows) on crankshaft sprocket (11); check basic position of camshafts if necessary (05-2230) .
NOTE:
The plastic guide (sliding surface) is clipped into the guide rail (18) and can be replaced separately. Projection of guide rail pin (17) at top with female thread 21 mm. Projection of guide rail pin (21) at bottom 34 mm. |
