Removing and installing driven plate - AR03.30-P-8003AO

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120

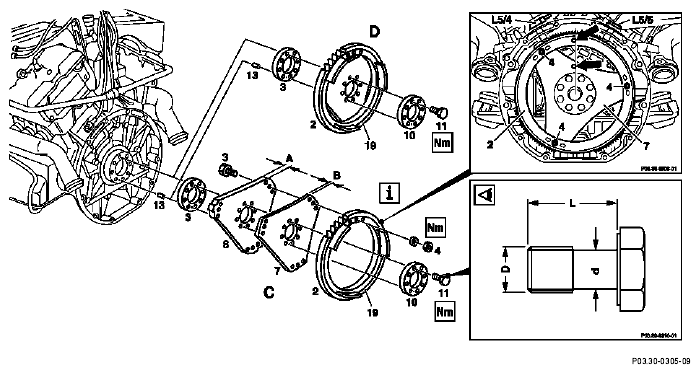

Fig 1: Identifying Driven Plate Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Remove transmission
2	Install retaining lock for crankshaft/ring gear		AR03.30-P-5000AO
3	Unscrew stretch bolts (11) or micro-encapsulated straight-shank stretch bolts	Installation : inspect stretch bolts; measure diameter of stretch shank and length of stretch bolts. If the specified minimum ø "d" at the stretch shank or the max. bolt length "L" of the stretch bolts is reached, they should be replaced. Replace straight-shank stretch bolts.
			*BA03.30-P-1002-01C
4	Take off driven plates (7, 8) and ring gear (2)	Driven plate 1st version Installation : install thicker driven plate (8, thickness 1.5 mm) at crankshaft side. Driven plates and ring gear are individually balanced and can be replaced without balancing. Contact surface of driven plates (7, 8), of bolts and washers should be free of dirt and damage.
		Driven plate position/design	GF03.30-P-8002-01AO
5	Take driven plates (7, 8) off the ring gear	Driven plate 1st version Installation : the ring gear (2) should be installed in such a way that the ø 3.5 mm holes (arrows) in the ring gear (2) and in the driven plates (7, 8) have the same angle position otherwise proper operation of the ignition is not assured.
6	Install in the reverse order

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 120
BA03.30-P-1002-01C	Stretch bolt or micro-encapsulated straight shank stretch bolt for driven plate to crankshaft M12 x 1.5	1st stage	Nm	35
BA03.30-P-1002-01C		2nd stage	°∠	90
