Removing and installing flywheel / driving disc plate - AR03.30-P-8001HW

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 601, 602, 603 (except 602.982)

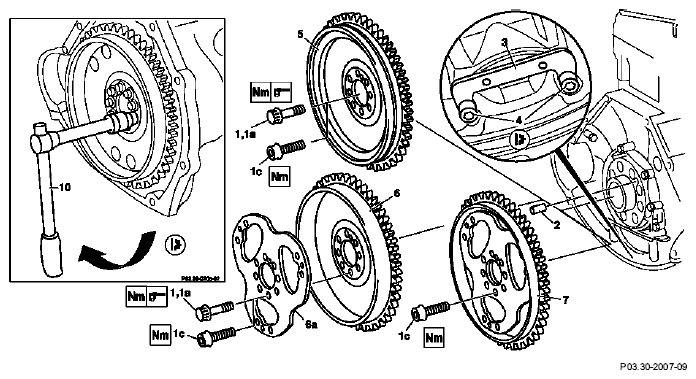

Fig 1: Identifying Flywheel And Driving Disc Plate Remove / Install Components
G05438254Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
1.1 Remove manual transmission
1.2 Remove automatic transmission
2.1 Remove clutch Manual transmission   AR25.10-P-0050A
3 Install retaining lock (3, 4) for crankshaft/ring gear NOTES Use bolts M6 x 90 otherwise the threads in the rear end cover will be damaged. ra03006010500x
4 Unscrew bolts (1, 1a, 1c) SPECIAL TOOL Fig 2
TORQUE SPECIFICATION Stretch shank bolts (1) *BA03.30-P-1004-01A
TORQUE SPECIFICATION Straight stretch shank bolts (1a) *BA03.30-P-1005-01A
TORQUE SPECIFICATION Torx bolts (1c) *BA03.30-P-1001-01A
IMPORTANT Replace torx bolts and straight stretch shank bolts
IMPORTANTInstallation:  If no torquing angle wrench is available, the bolts can be torqued further by the specified angle in a single operation using a wrench and tommy arm (10).
NOTESDo not use a flexi-rod torque wrench for tightening to angle degrees in order to avoid any angle errors.
5.1 Inspect bolts (stretch shank bolts) (1) for flywheel/ driven plate MEASURING
NOTES If the minimum stretch shank is achieved, replace stretch shank bolts		 *BE03.30-P-1001-01C
6 Take off flywheel (5), two-mass flywheel or flywheel (6) with driven plate (6a), or starter ring gear (7) Straight pin (2) centers flywheel and driven plate.
IMPORTANT Flywheels do not need to be balanced and must not be interchanged.
7 Install in the reverse order
INSPECTION DATA BOLTS FOR FLYWHEEL/DRIVEN PLATE

Number Designation Engine 601,602 except 602.98, 603 with two-mass flywheel Engine 601, 602 except 602.98, 603 manual and automatic transmission driven plate 1st version
BE03.30-P-1001-01C Flywheel or driven plate bolts (1st version) Thread Ø (D)   M 10 x 1 10 x 1
Stretch shank Ø (d) when new mm 8.3-8.5 8.3-8.5
min mm 8.1 8.0
Length of shank (L) when new mm 56.8-57.2 21.8-22.2
max. mm - 22.5
Part no.   103 032 00 71 102 032 00 71
INSPECTION DATA BOLTS FOR FLYWHEEL/DRIVEN PLATE

Number Designation Engine 601, 602 except 602.98, 603 automatic transmission driven plate 2nd version
BE03.30-P-1001-01C Flywheel or driven plate bolts (1st version) Thread Ø (D)   M 10 x 1
Stretch shank Ø (d) when new mm 8.3-8.5
min mm 8.0
Length of shank (L) when new mm 25.8-26.2
max. mm 26.5
Part no.   601 032 01 71
TORQUE SPECIFICATION FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 601, 602, 603 with/ without automatic transmission
BA03.30-P-1001-01A Central bolt of vibration damper 8.8 1st stage Nm 200
2nd stage ∠ ° 90
10.9 1st stage Nm 320
2nd stage ∠ ° -
BA03.30-P-1004-01A Stretch shank bolt for flywheel to crankshaft   1st stage Nm 35
  2nd stage ∠ ° 90
BA03.30-P-1005-01A Straight stretch shank bolt for flywheel or two-mass flywheel to crankshaft   1st stage Nm 45
  2nd stage ∠ ° 90
Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
G05438255Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
