Inspecting tensioning device (1st version) - RA13001193452X(13-3452)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Tensioning device removed (13-3450) .

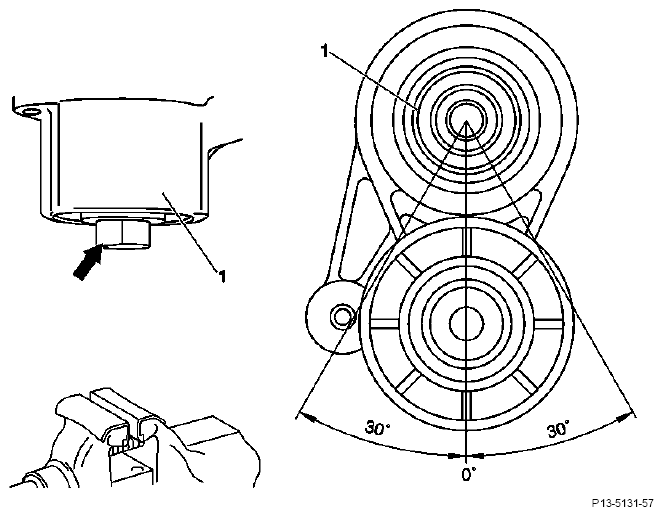

| Tensioning device (1) | fix in place at flats (arrow) (eg. vice). |
| Tensioning device (1) | turn about 30° to both sides.
NOTE:
The tensioning device (1) must move back into its initial position after being turned.
|
