Removing and installing tensioning device - RA13001193450X(13-3450)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Poly V-belt removed (13-3420) .
Operation no. of operation texts and work units or standard texts and flat rates
13-1202-4001
1st version
| Tensioning device | remove, install (100 Nm) (steps 1 to 3). |
TIGHTENING TORQUES IN NM
| Fastening bolt of tensioning device | 100 |
| Bolt of tensioning pulley to bracket (M8X40) | 30 |
Removing, installing
- Remove poly V-belt (13-3420) .

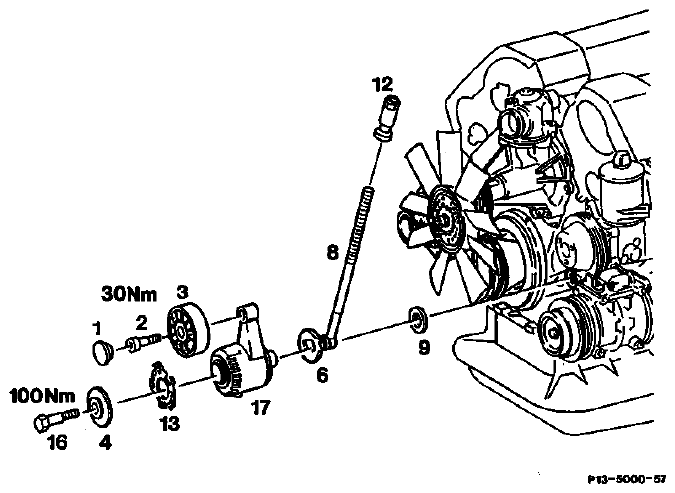

- Unscrew bolt (16).
Tightening torque 100 Nm.
Installation instruction

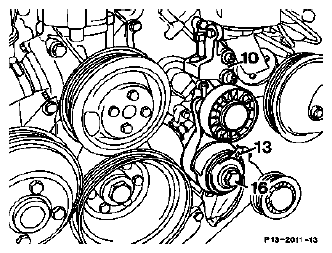

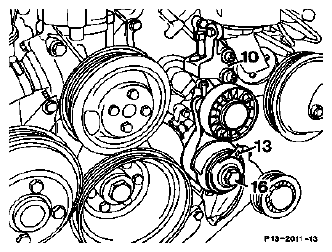

The setting pointer must be aligned with that of the first marking (1) in the untensioned condition.
- Remove tensioning nut (12) together with tensioning bolt (8) from bracket (10) at the power steering pump.
Installation is performed in the reverse order.
Preceding work:
Poly V-belt removed (13-3420) .
Operation no. of operation texts and work units or standard texts and flat rates
13-3200
2nd and 3rd version

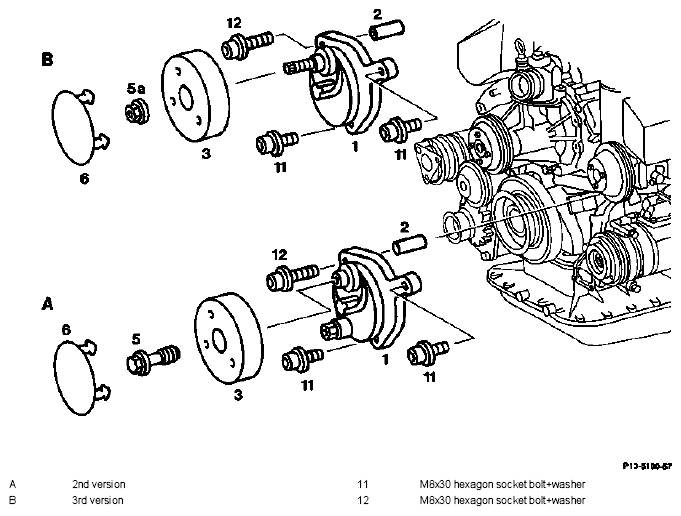

| End cover (6) | take off, fit on. |
| 2nd version: bolt (5) | unscrew, screw on (25 Nm). |
| 3rd version: nut (5a) | unscrew, screw on (25 Nm). |
| Tensioning pulley (3) | remove, install. |
| Bolts (11) and (12) | unscrew, screw on (21 Nm). |
| Tensioning device (1) with sleeve (2) | remove, install. |
TIGHTENING TORQUES IN NM
| Bolts of tensioning pulley | 25 |
| Bolts of tensioning device | 21 |
Special tool
