Removing and installing radiator - RA20001204200X(20-4200)

Preceding work:

Fan cowl removed (20-3400) .

Operation no. of the operation texts and work units or standard texts and flat rates

20-3865

1. Model 129

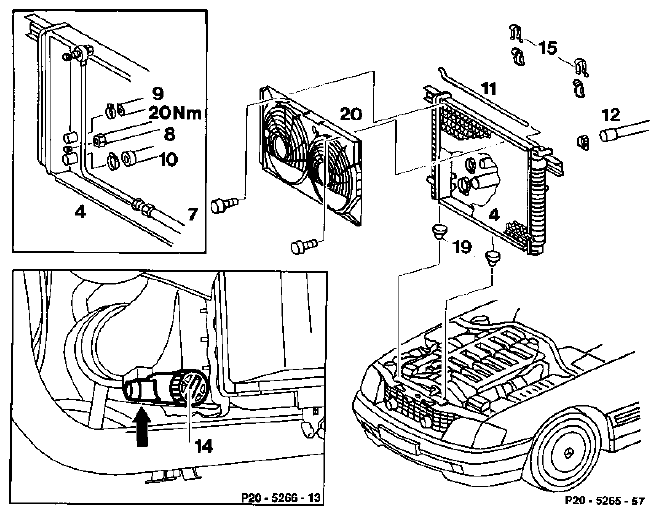

   Fig 1: Identifying Radiator Remove/Install Components (Model 129)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Expansion tank cap	open (release pressure).
   Coolant	drain from radiator (arrow).
   To drain coolant	fit hose (inner dia. 12 mm) onto connection (arrow).
   Drain plug (14)	unscrew.
   Coolant	drain into suitable vessel (10 liters).
   Oil lines (7 and 8) of automatic transmission	unscrew from radiator (4), screw on.
   Coolant hoses (9, 10, 11 and 12)	take off, fit on.
   Flat springs (15)	unclip upward, clip in.
   Condenser (20)	unbolt from radiator (4), bolt on.
   Radiator (4) Installation notes  The securing studs of the radiator must be inserted into the rubber pads (19) of the bottom cross member.	remove upward, install.
   Cooling system	fill, bleed Draining, pouring in coolant - anti-freeze protection table .
   Oil level of automatic transmission	check, adjust to correct level.
   Cooling system	check for leaks Testing cooling system for leaks .

   TIGHTENING TORQUES IN NM



   Gear oil hose of automatic transmission to radiator (union nut)	20
   Hose clips (reference value)	2.5
   Drain plug of radiator (reference value)	1.5

   COMMERCIALLY AVAILABLE TOOL



   7 mm socket wrench hexagon on flexible shaft for hose clips with worm drive

   e.g. Hazet, D-5630 Remscheid Order no. 426-7

   Preceding work:

   Fan cowl removed (20-3400) .

   Operation no. of the operation texts and work units or standard texts and flat rates

   20-3865-4535

2. Model 140

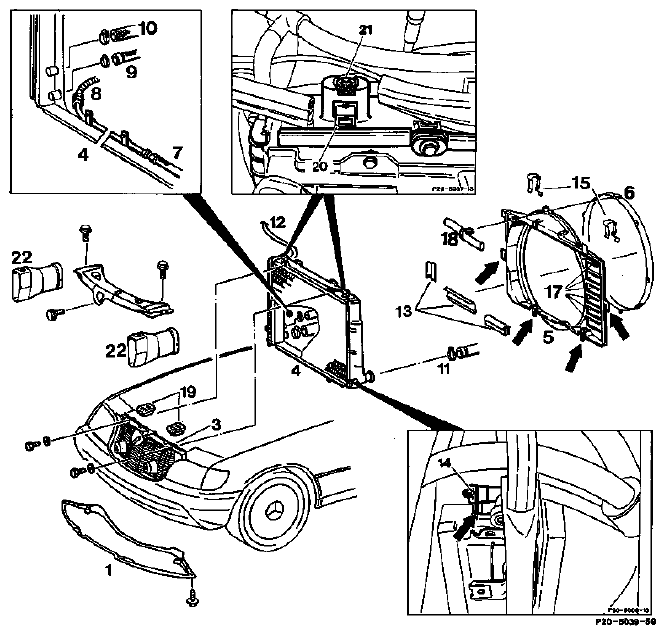

   Fig 2: Identifying Radiator Remove/Install Components (Model 140)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Expansion tank cap	open (release pressure).
   Coolant	drain from radiator (arrow), refill.
   NOTE: To drain, connect hose (ID 12 mm)	to connection (arrow).
   Drain plug (14)	unscrew.
   Coolant (approx. 10 liters)	drain into suitable vessel.
   Oil lines (7 and 8) for automatic transmission	unscrew from radiator (4), screw on (20 Nm).
   Coolant hoses (9, 10 and 11)	remove, install.
   Plastic strips on radiator	pull off, fit on.
   Front air scoops (22)	remove, install (09-0060) .
   Bowden cable of hood catch at radiator (4)	detach, attach.
   Coolant hose (12)	detach, attach.
   Radiator (4)	unscrew from condenser (3), screw on.
   Radiator (4) Installation notes  The securing studs of the radiator must be inserted into the rubber grommets (19) of the bottom cross member when installing.	remove upward, install.
   With new radiator (4)	set adjusting bar (20) by hand with adjusting screw (21).
   To perform this step The adjusting bar (20) must be resting slightly pretensioned against the front cross member (2).	turn adjusting screw (21) when front cross member (2) installed.
   Cooling system	fill, bleed Draining, pouring in coolant - anti-freeze protection table .
   Oil level of automatic transmission	check, adjust to correct level.
   Cooling system	check for leaks Testing cooling system for leaks .

   TIGHTENING TORQUES IN NM



   Hose clamps (reference value)	2.5
   Drain plug, radiator	1.5
   Gear oil hose of automatic transmission to radiator (union nut)	20

   COMMERCIALLY AVAILABLE TOOL



   7 mm socket wrench on flexible shaft for hose clamps with worm screw

   e.g.

   Hazet, D-5630 Remscheid Order no. 426-7
