Removing and Installing Intake Air Scoop - RA09001190060X(09-0060)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Operation no. of operation texts and work units or standard texts and flat rates:
09-0060

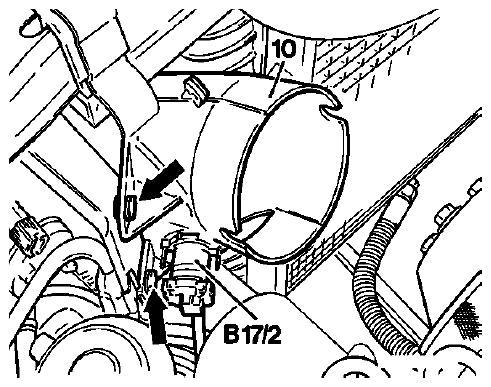

| Intake air hose | detach, fit on. |
| Electric coupling of intake air temperature sensor (B17/2) | at left intake air scoop, detach, fit on. |
| Expanding clips (arrows) | press out, press in. |
