Removing and installing oil pan - AR01.45-P-7500AP

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120 in MODEL 140

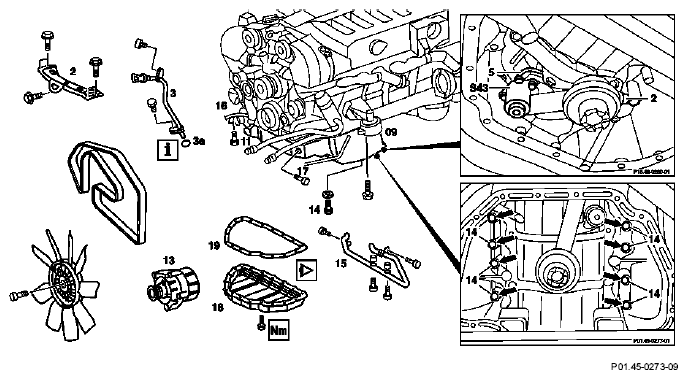

Fig 1: Identifying Oil Pan Removing And Installing Components (1 Of 2)
G05438043Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

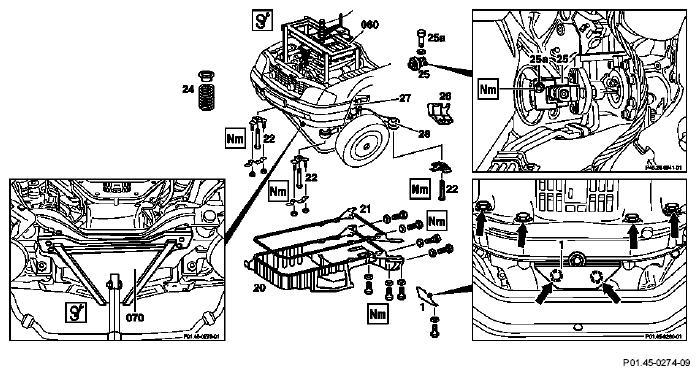

Fig 2: Identifying Oil Pan Removing And Installing Components (2 Of 2)
G05438044Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
1 Remove poly V-belt   AR13.22-P-1202AO
2 Remove air cleaner together with mass air flow sensor   AR09.10-P-1050F
3 Disconnect ground cable at battery   AR54.10-P-0003A
4 Remove engine compartment panel at bottom rear
5 Drain engine oil TORQUE SPECIFICATION *BA01.45-P-1003-01A
6 Detach electric cable of oil pressure sensor at bottom part of oil pan (18)
7 Unbolt ATF line of automatic transmission (17) at oil pan (20)
8 Unbolt secondary air injection line (15) from bottom part of oil pan (18) and at left and right engine support
9 Unbolt bottom part of oil pan (18) TORQUE SPECIFICATION *BA01.45-P-1006-01A
    IMPORTANTInstallation:  inspect gasket (19) and replace if necessary.
10 Unplug connector (2) of oil level sensor (S43) at oil pan (20)
11 Unscrew bolts (14) of oil pan on inside TORQUE SPECIFICATION *BA01.45-P-1001-01A
12 Remove front suspension torsion bar
13 Remove front springs (21)   AR32.20-P-0200B
14 Unbolt shock absorber (27) at bottom
15 Unbolt both front engine mounts (09) at front suspension carrier (28) TORQUE SPECIFICATION *BA22.10-P-1004-01B
16 Install engine supporting frame (060) SPECIAL TOOL Figure
17 Attach engine to front and rear engine lifting eyes
18 Unbolt dipstick guide tube (3) at top of cylinder head cover
19 Unbolt shield (26) of steering joint (25) and push to the side
20 Detach steering joint (25) TORQUE SPECIFICATION *BA46.10-P-1001-01A
    IMPORTANT Unscrew bolt (25a) for this step and detach steering joint (25)
TORQUE SPECIFICATION		 *BA46.10-P-1002-01A
    TORQUE SPECIFICATION *BA46.10-P-1003-01A
21 Support front suspension carrier (28) with trolley jack attachment (070) SPECIAL TOOL Fig 4
22 Take off rear covers of bolts (22)
23 Unscrew micro-encapsulated bolts (22) of front suspension (28) IMPORTANT Use hexagon socket wrench bit size 21 for this step.
IMPORTANTInstallation:  retap (clean) thread in body with M14 1.5 thread tap before installing. Replace micro-encapsulated bolts.		 AR33.10-P-0100A
24 Lower front suspension (28) sufficiently until oil pan can be removed
25 Remove generator (13)
26 Unbolt ATF lines of automatic transmission (16, 17), air-oil cooler (11), AC compressor at oil pan
27 Unbolt dipstick guide tube (3) at oil pan (20) IMPORTANTInstallation:  replace seal (3a).
Remove dipstick guide tube (3) together with oil pan (20).
28 Unscrew bolts of oil pan TORQUE SPECIFICATION *BA01.45-P-1001-01A
    IMPORTANTInstallation:  the rear contact surface should be aligned to the transmission before bolting oil pan tight. If the oil pan is not aligned to the transmission, this can result in noise and vibration problems.
Unscrew bolts according to bolt diagram.
Bolt diagram of oil pan		 AR01.45-P-7500-06AP
29 Lower oil pan (20) and remove to the front   AR01.45-P-7500-06AP
30 Remove shield in oil pan IMPORTANT After engine damage, dirt may have gathered behind the shields. It is essential to remove this dirt. AR01.45-P-7510AO
31 Replace gasket (21)
32 Install in the reverse order
DANGER Risk of accident  as a result of vehicle starting off when engine running. Risk of injury  as a result of bruises and burns if you insert your hands into engine when it is being started or when it is running. Secure vehicle to prevent it starting off.
Wear closed and close-fitting work clothes.
Do not grasp hot or rotating parts.		 AS00.00-Z-0005-01A
33 Run engine and inspect for leaks
OIL PAN

Number Designation Engine 120
BA01.45-P-1001-01A Bolt of oil pan to crankcase M6 Nm 10
M8 Nm 21
M10 Nm 40
BA01.45-P-1003-01A Oil drain plug to oil pan M12 Nm 40
M14 Nm -
BA01.45-P-1006-01A Bolt of bottom part of oil pan to oil pan   Nm 9
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 120 in model 140 with transmission 717.4, 722.4/5
BA22.10-P-1004-01B Bolt of engine mount to front suspension Nm 25
STEERING SHAFT

Number Designation Model 140 up to vehicle ident end no. A-033 950 Model 140 as of vehicle ident end no. A-033 951 up to A-166 259
BA46.10-P-1001-01A Bolt of steering joint M8 Nm 25 -
BA46.10-P-1002-01A Bolt of steering joint M10 Nm - 30
BA46.10-P-1003-01A Bolt of steering joint M8 Nm - -
STEERING SHAFT

Number Designation Model 140 as of vehicle ident end no. A-166 260
BA46.10-P-1001-01A Bolt of steering joint M8 Nm -
BA46.10-P-1002-01A Bolt of steering joint M10 Nm -
BA46.10-P-1003-01A Bolt of steering joint M8 Nm 20
Fig 3: Identifying Engine Supporting Frame (140 589 01 61 00)
G05438045Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Trolley Jack Attachment (140 589 00 62 00)
G05438046Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
