Installing cylinder liner - AR01.40-P-9273AW

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 601, 602, 603 (except, 602.982)

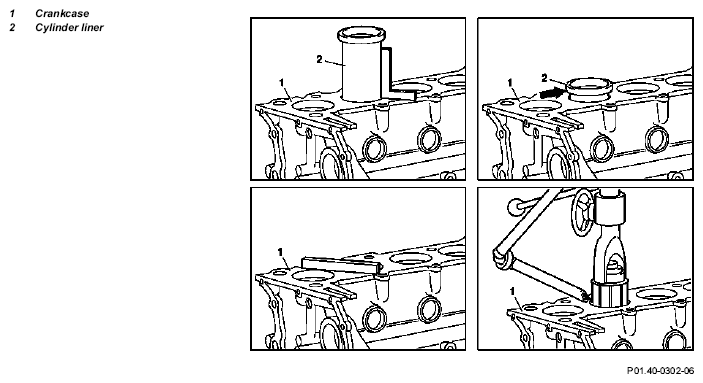

Fig 1: Installing Cylinder Liner

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Installing
1.1	Widen cylinder bore in crankcase (1)	Engines without cylinder liners	AR01.40-P-9271AW
1.2	Remove cylinder liner to be replaced	Engines with cylinder liners	AR01.40-P-9272AW
2	Place crankcase (1) onto the press and align
3	Position new cylinder liner (2) at the bore and align at right angles
4	Press in cylinder liner (2)	Use a suitable plate for pressing in. Inspect cylinder liner seat for abrasion and clean with compressed air, if necessary. After pressing in, maintain pressure on cylinder liner for a further 7 seconds or so (settling pressure).
5	Machine contact surface of crankcase (1) together with timing case cover	Keep stock removal at contact surface to the minimum possible.	AR01.40-P-9133AW
6	Clean crankcase (1)
7	Bore and hone cylinder bores		AR01.40-P-9271AW
