Remove/install driver on camshaft (119)- RA01001192130X(01-2130)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Removing and installing intake air hoses (09-0015) .
Model 124: removing and installing intake air scoops (09-0060) .

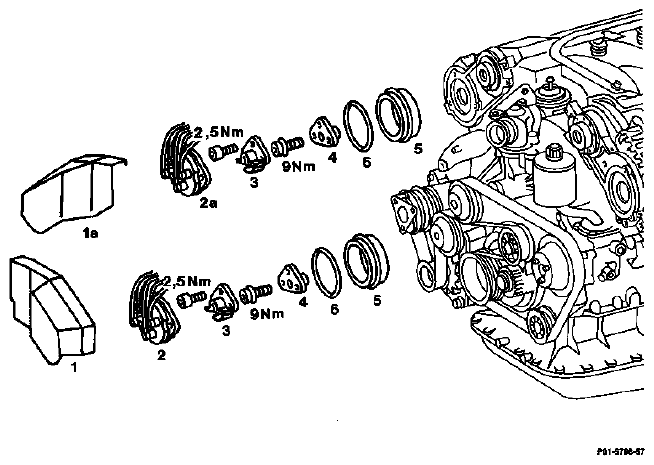

Engine 119.96/97
| Shielding caps (1) and (1a) at the side | unclip, take off, fit on. |
| High voltage distributors (2) and (2a) | unbolt, bolt on. |
| Distributor rotor (3) | unbolt, bolt on (2.5 Nm). |
| Driver (4) | unbolt, bolt on (9 Nm). Installation note The slot of the driver (4) must engage in the locating pin in the camshaft. |
| Protective cover (5) together with seal (6) | take off, fit on. |
