Removing and installing bracket for cellular telephone - AR82.70-P-8918FA

MODEL 202.07 /08 /09 /18 /19 as of 1.7.00 with CODE (854) MB cellular telephone Bracket for cellular (telephone) on right center console, in combination with Audio series radio or Audio 30 APS

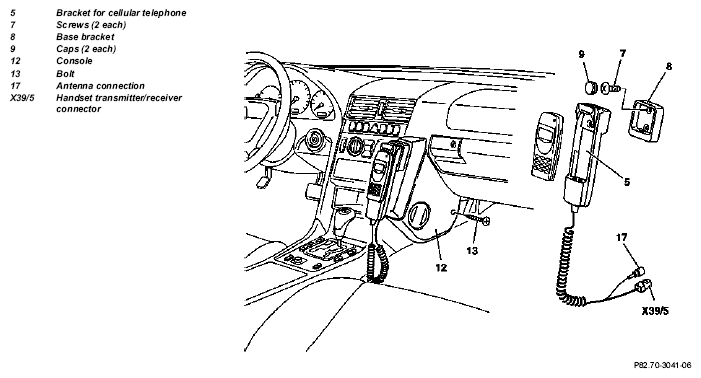

Fig 1: Identifying Bracket For Cellular Telephone Remove/Install Components - Model 202.07 /08 /09 /18 /19 As Of 1.7.00 With Code (854)

	Removal, installation
1	Remove cellular telephone from bracket (5)
2	Fold up cover on center console (screwed)	See: ↓ Remove cover on center console	AR68.20-P-2350E
3	Remove ashtray housing from center console		AR68.20-P-2400E
4	Remove console (12)	The console (12) is inserted in the center console and secured with screw (1).
5	Disconnect handset transmitter/receiver connector (X39/5) and antenna connection (17)
6	Remove bracket for cellular telephone (5) from base bracket (8) and remove connection lines from console (12)
7	Pull cap (9) out of base bracket (8)
8	Unscrew 2 screws (7) from base bracket (8) and lift base bracket (8)
9	Install in the reverse order
