Removing and installing GSM 1800 MHz network compensator - AR82.70-P-0010AC
MODEL 208.3 as of 1.7.00 with CODE (854) MB cellular telephone

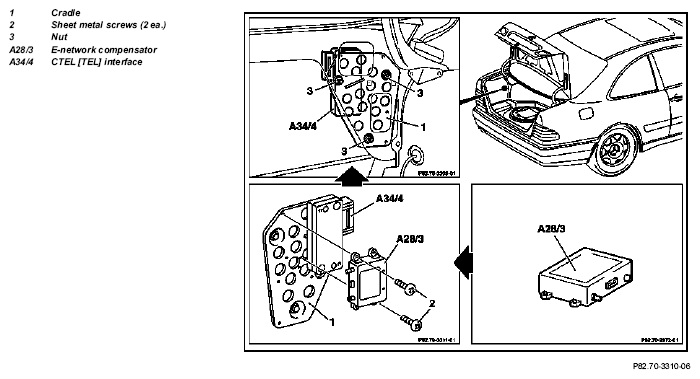

Fig 1: Identifying GSM 1800 MHz Network Compensator Remove/Install Components - Model 208.3 As Of 1.7.00 With Code (854)
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries. | No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | AR54.10-P-0003A | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3 | Remove side cover on left side of trunk | ||
| 4 | Unscrew nut (3) | ||
| 5 | Carefully remove holder (1) with control modules | ||
| 6 | Release connector on E-network compensator (A28/3) and disconnect | ||
| 7 | Disconnect antenna cable on E-network compensator (A28/3) | ||
| 8 | Loosen sheet metal screws (2) | ||
| 9 | Remove E-network compensator (A28/3) | ||
| 10 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
