Removing and installing front passenger seat occupied recognition sensor - AR91.60-P-0720C

MODEL 129 With front passenger seat occupied recognition

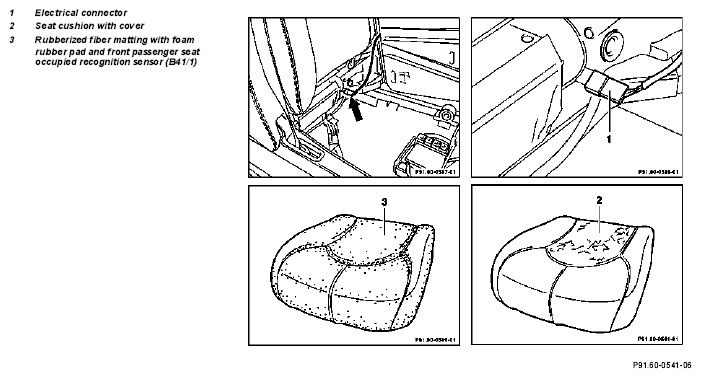

Fig 1: Identifying Front Passenger Seat Occupied Recognition Sensor Components

	Removal, installation
1	Remove passenger seat cushion	Disconnect electrical connector (1) on front passenger seat occupied recognition sensor (B41/1) in area of seat	ra91001290055x
2	Remove seat cushion cover		ra91001290180x
3	Remove rubberized fiber matting and front passenger seat occupied recognition sensor (B41/1)	Installation  : The front passenger seat occupied recognition sensor (B41/1) can be delivered only together with rubberized fiber matting and foam rubber matting
4	Reinstall in opposite order
