Removing and installing fuel gauge sensor - AR47.10-P-7000FA

MODEL 129

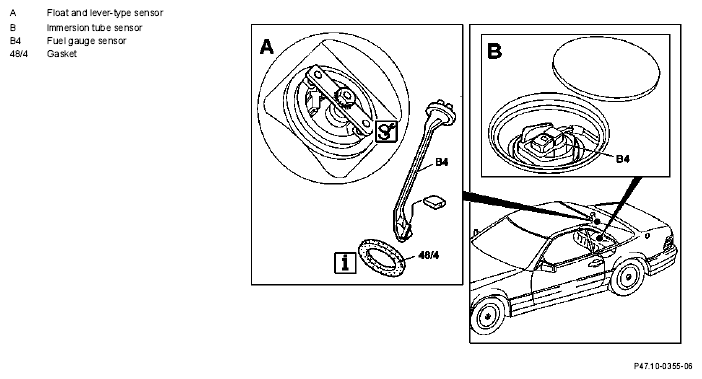

Fig 1: Identifying Fuel Gauge Sensor Components (1 Of 2)

Fig 2: Identifying Fuel Gauge Sensor Components (2 Of 2)

	Removing, installing
	Risk of explosion  from fuel igniting, risk of poisoning  from inhaling and swallowing fuel as well as risk of injury  to eyes and skin from contact with fuel.	No fire, sparks, naked flame and smoking Pour fuels only into suitable and appropriately marked vessels Wear protective clothing when handling fuel	AS47.00-Z-0001-01A
1	If fuel tank is full, pump out about 8 liters of fuel	Except version (code 491) as of 09/97	AR47.10-P-4001B
		Version (code 491) as of 09/97	AR47.10-P-4001F
2	Disconnect connector (arrow) from fuel gauge sensor (B4)	Secure electric leads against slipping down
3	Unscrew sealing flange and fuel gauge sensor (B4)		*BA47.10-P-1003-01B
	Float and lever-type sensor replaces immersion tube sensor		BT47.10-P-0001-01A
4	Remove hard top
5	Close soft top so that it is completely folded out of soft top compartment (1) and the soft top compartment cover (1) is still open
6	Take out fuel gauge sensor (B4)
7	Install in the reverse order
8	Replace O-rings	Oil to facilitate installation

FUEL TANK

Number	Designation		Model 129
BA47.10-P-1003-01B	Sealing flange and fuel gauge sensor on fuel tank	Nm	40

Fig 3: Identifying Puller (210 589 01 07 00)
