Draining and filling fuel tank - AR47.10-P-4001F

MODEL 129, 170, 210 with CODE (494a) USA version with CODE (808) Model year 1998

Shown on model 210

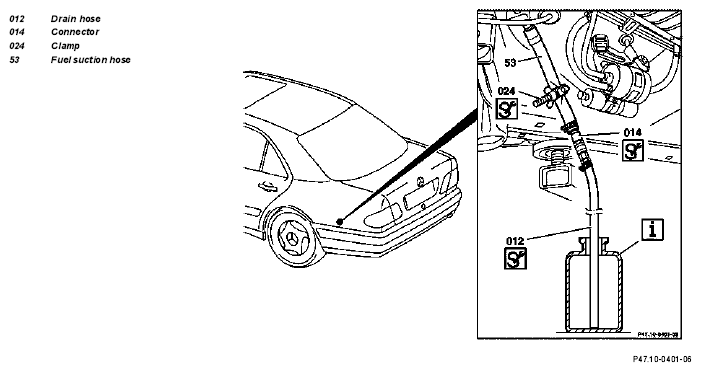

Fig 1: Identifying Drain Hose, Connector, Clamp And Fuel Suction Hose

	Risk of explosion  from ignition. Risk of poisoning  from inhaling and swallowing fuel. Risk of injury  as a result of fuel coming into contact with skin and eyes	No fire, naked flame or smoking Pour fuels only into suitable and appropriately marked containers Wear protective clothing when handling fuel	AS47.00-Z-0001-01A
1	Remove cover
2	Pinch off fuel suction hose (53)		Fig 3
3	Detach fuel suction hose (53)
4	Fit on drain hose (012) together with connector (014)	The vehicle must be connected to the safety tank by a ground cable in order to avoid static charging	Fig 2
5	Remove cap at fuel filler neck
6	Drain fuel into safety tank

Fig 2: Identifying Connector (210 589 01 91 00)

Fig 3: Identifying Clamp (000 589 40 37 00)

Fig 4: Identifying Suction Hose (168 589 00 90 00)
