Removal, installation |
|
|
 |
Risk of explosion |
Observe accident prevention regulations! |
|
| 1 |
Empty fuel tank (75) |
Carefully pump out fuel so that no fuel remains in tank |
|
| |
|
Observe capacity |
*BF47.10-P-1001-01A |
| 2 |
Remove fuel tank trim and also left and right side trim of trunk |
|
|
| 3 |
Take off fuel hose at suction end (53), fuel return hose (74) and vent pipe (76/1) |
Collect remaining fuel, seal connections |
|
| |
|
 |
*BA47.10-P-1004-01B |
| |
|
 |

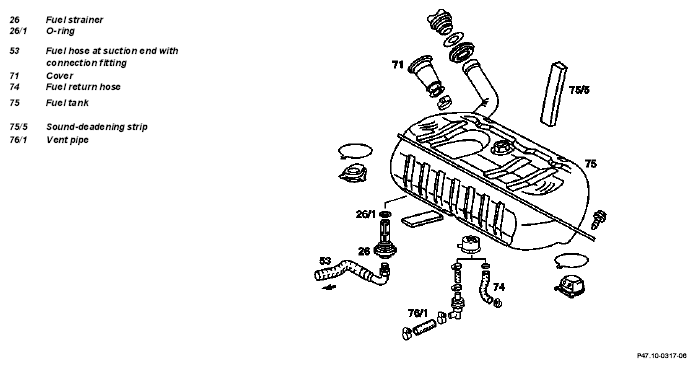

Figure |
| 4 |
Remove fuel gauge sender, install |
|
AR47.10-P-7000FA |
| 5 |
Remove partition |
|
|
| 6 |
Push back cover (71) |
Slacken clip for this step |
|
| 7 |
Remove control module of infrared remote central locking (N54) |
|
|
| 8 |
Take off vent valve (76) and fuel return hose (74) |
Detach exhaust system at rubber rings for this step |
|
| 9 |
Disconnect left driveshaft at inner connecting flange |
|
AR35.30-P-0620A |
| 10 |
Take out fuel tank (75) |
Use plastic wedges (arrow) or similar, if necessary, to lever out of opening. Pull fuel tank in car fully to the rear left and take out at the filler neck. |
|
| 11 |
Examine sound-deadening strip (75/5) |
Replace if necessary. Stick on sound deadening strip (self-adhesive) |
|
| 12 |
Remove fuel strainer (26) |
Clean and check whether it can be re-used
The splash pot in the fuel tank is secured against turning by 2 bolts. It is attached to the fuel strainer (26). If insufficient space is available, install fuel strainer from below after inserting the fuel tank. |
|
| |
|
|
*BA47.10-P-1001-01B |
| 13 |
Replace O-ring (26/1) |
Oil to facilitate installation |
|
| 14 |
Install in the reverse order |
|
|
