Removal & Installation
- Remove coupe roof. See REMOVING HARD TOP
under OPERATION. Remove occasional seats. See OCCASIONAL SEATS (REAR SEATS)
. Remove luggage shelf. See SHELF (LUGGAGE COMPARTMENT REAR SEAT AREA)
. Remove side panels. See SIDE PANELS (REAR COMPARTMENT)
.
- Make ready for installation NEW solenoid valve.
- Raise roll bar.

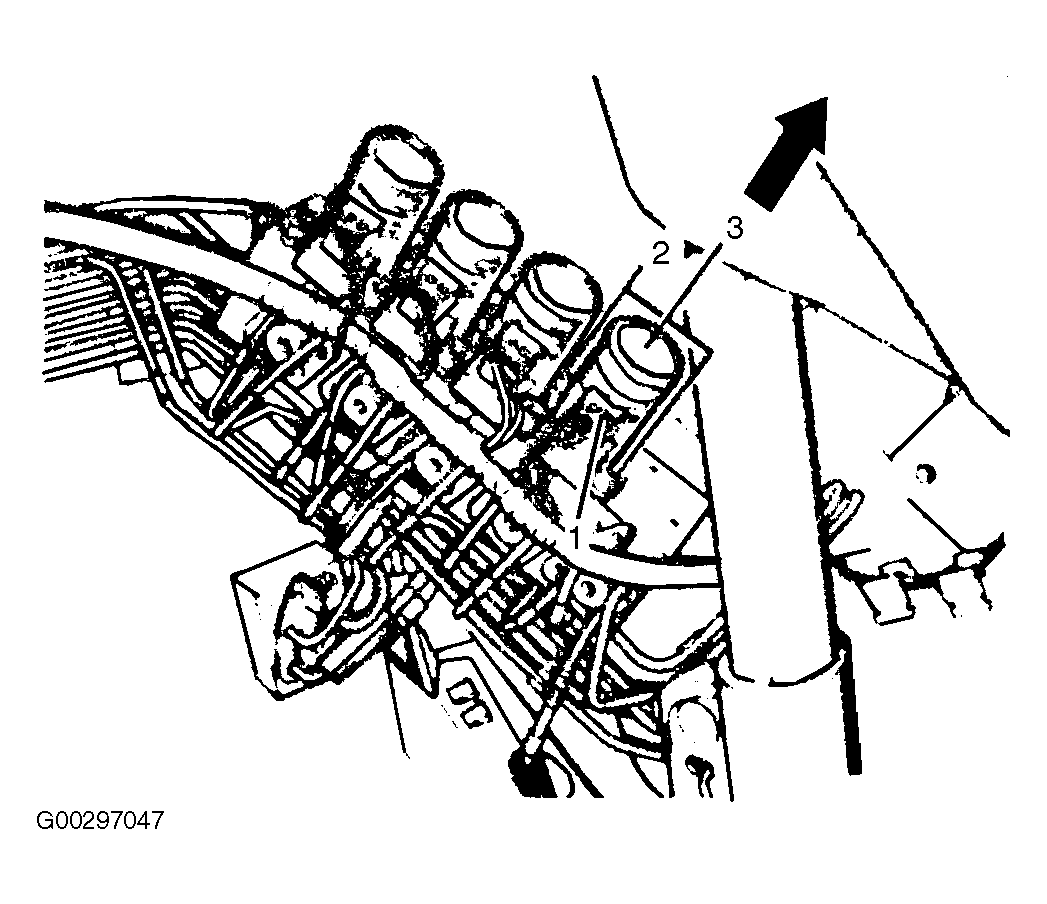

- Disconnect plug connector (1). See Fig 1
.
- Remove screws (2). Upon install tighten screws to 62 INCH lbs. (7 Nm).
- Remove solenoid valve (3) in direction of arrow. See Fig 1
. Insert solenoid valve immediately in the valve block, otherwise installation would be hindered by escaping hydraulic oil.
- Install in reverse order. Check for proper function and leakage.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
