Adjustment (Without Marked Ranges W, X, Y & Z)
NOTE:
Two adjustment procedures are available dependent on visual inspection. Vehicles with catches marked with switching ranges (W, X, Y & Z), and vehicles without marked switching ranges (W, X, Y & Z). Inspect caches for appropriate procedure. For vehicles without marked ranges, See ADJUSTMENT (WITH MARKED RANGES W, X, Y & Z)
NOTE:
During procedures the numbers in parentheses, within steps, correspond to numbers inside the illustration(s). The word arrow(s) in parentheses, within steps, is used to point out specific components or movement.

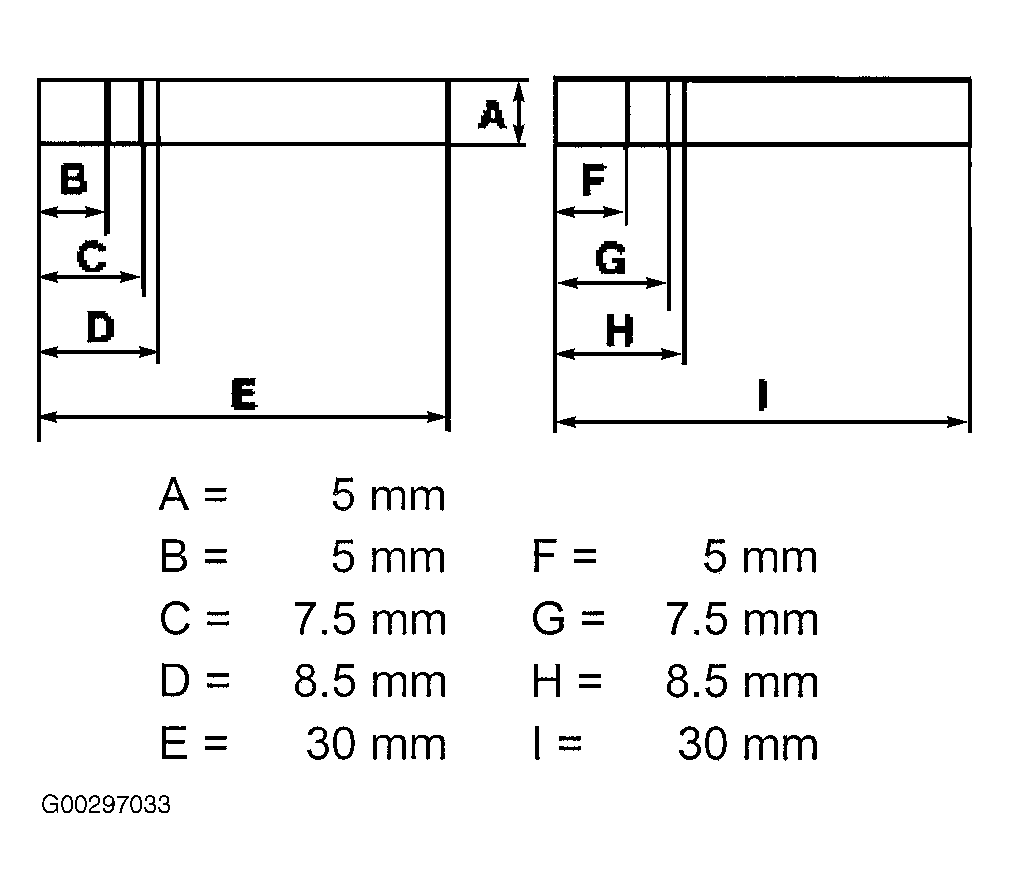

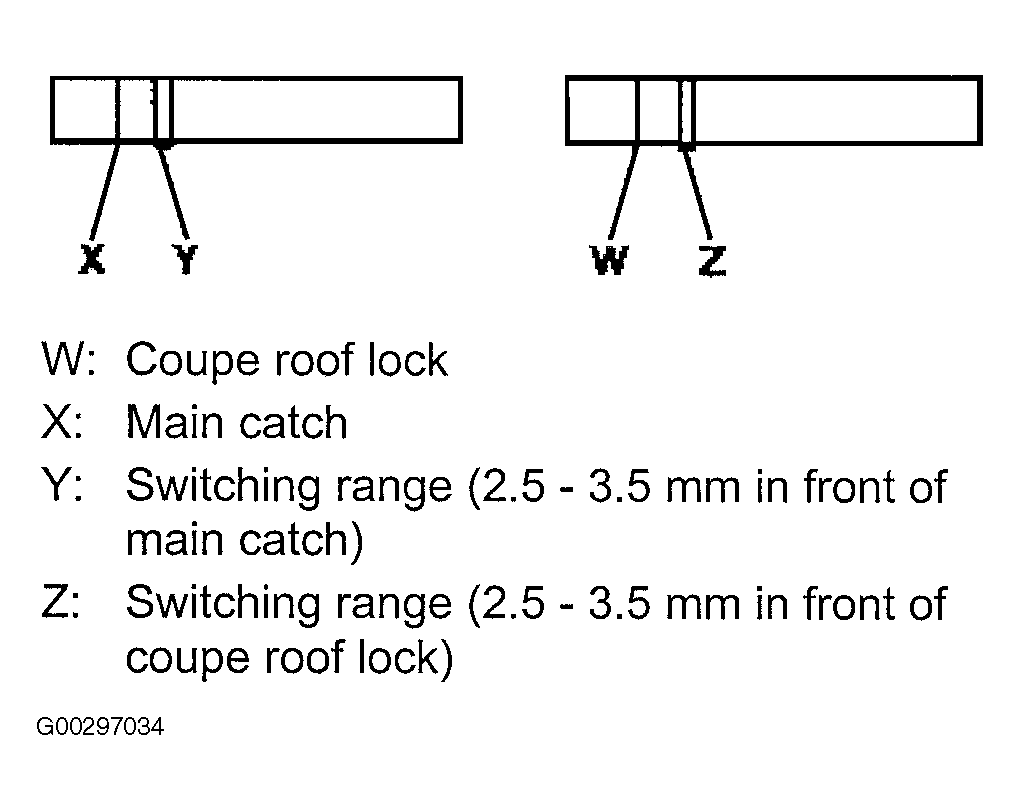

- Cut paper strips according to drawing and marks as indicated. See Fig 1 and Fig 2 .

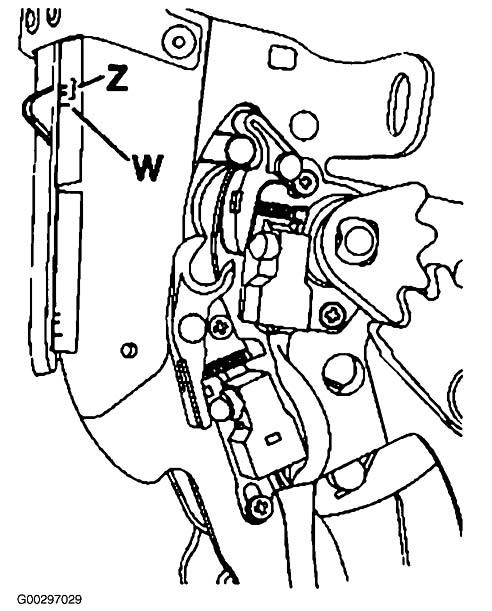

- Glue paper strips (W, Z) to catch so that upper edge of rotating lock (5) forms a line with the coupe roof catch (W) when the rotating lock is pressed downward with thumb (against stop). Glue paper strips (X & Y) to catch so that upper edge of rotating lock (5) forms a line with the main catch (X) in the locked state (press down with thumb to eliminate play). See Figure . Continue adjustment as if catches were supplied with marks. Go to step 1 under ADJUSTMENT (Catches Marked W, X, Y & Z).
