Adjustment (With Marked Ranges W, X, Y & Z)
NOTE:
Two adjustment procedures are available dependent on visual inspection. Vehicles with catches marked with switching ranges (W, X, Y & Z), and vehicles without marked switching ranges (W, X, Y & Z). Inspect caches for appropriate procedure. For vehicles without marked ranges, See ADJUSTMENT (WITHOUT MARKED RANGES W, X, Y & Z)
NOTE:
During procedures the numbers in parentheses, within steps, correspond to numbers inside the illustration(s). The word arrow(s) in parentheses, within steps, is used to point out specific components or movement.
- With catch released press catch in LOCK direction with thumb until resistance is felt. The rotating lock (5) should form a line with the mark "W" (coupe roof catch). If not adjust switching range "Z" by this amount. See Fig 1 .

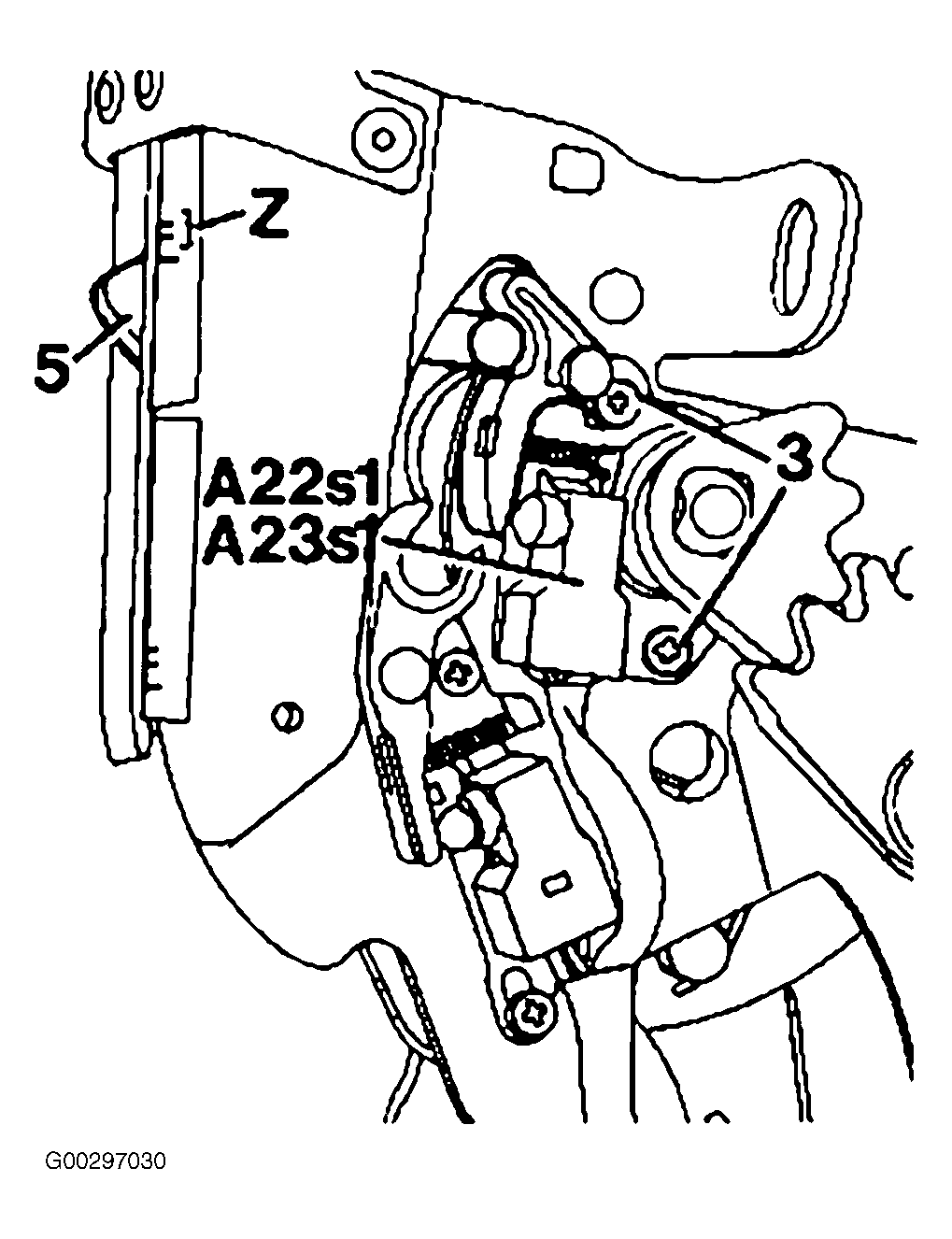

- Connect multimeter to plug connector (A22x or A23x, pins 1 and 2). Set multimeter to continuity test (acousting signal). Press rotating lock (5) in LOCK direction with thumb. Limit switch (A22s1 or A23s1) should actuate when the upper edge of the rotating lock (5) is in switching range (Z). If necessary adjust limit switch (A22s1 or A23s1) by moving in oblong holes. Apply screw-securing agent to screws (3) for limit switch (A22s1 or A23s1). See Fig 2 .

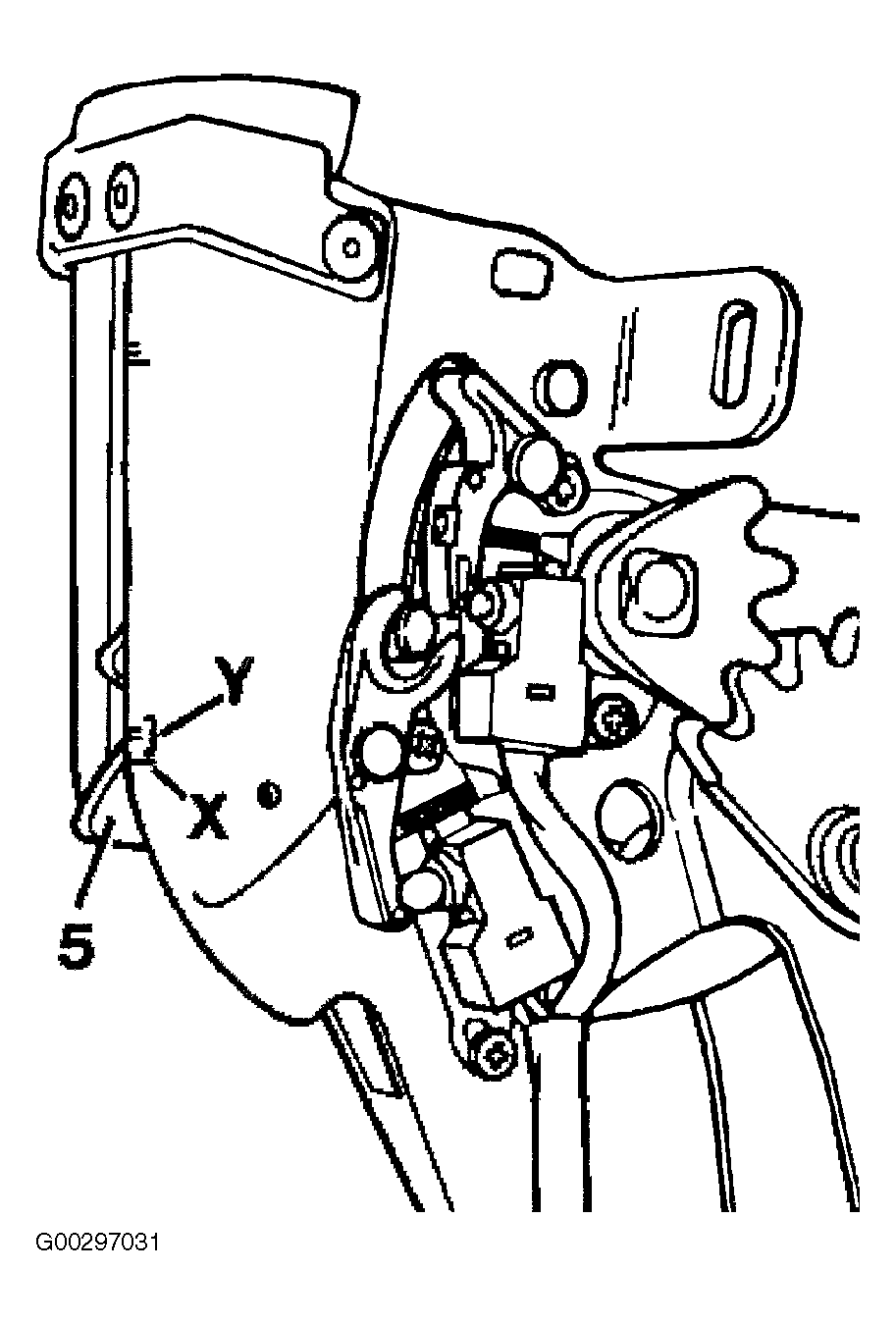

- Lock catch. Press rotating lock (5) in "release" direction with thumb until resistance is felt. The rotating lock (5) should form a line with mark "X" (main catch). If not adjust switching range "Y" by this amount. See Fig 3 .

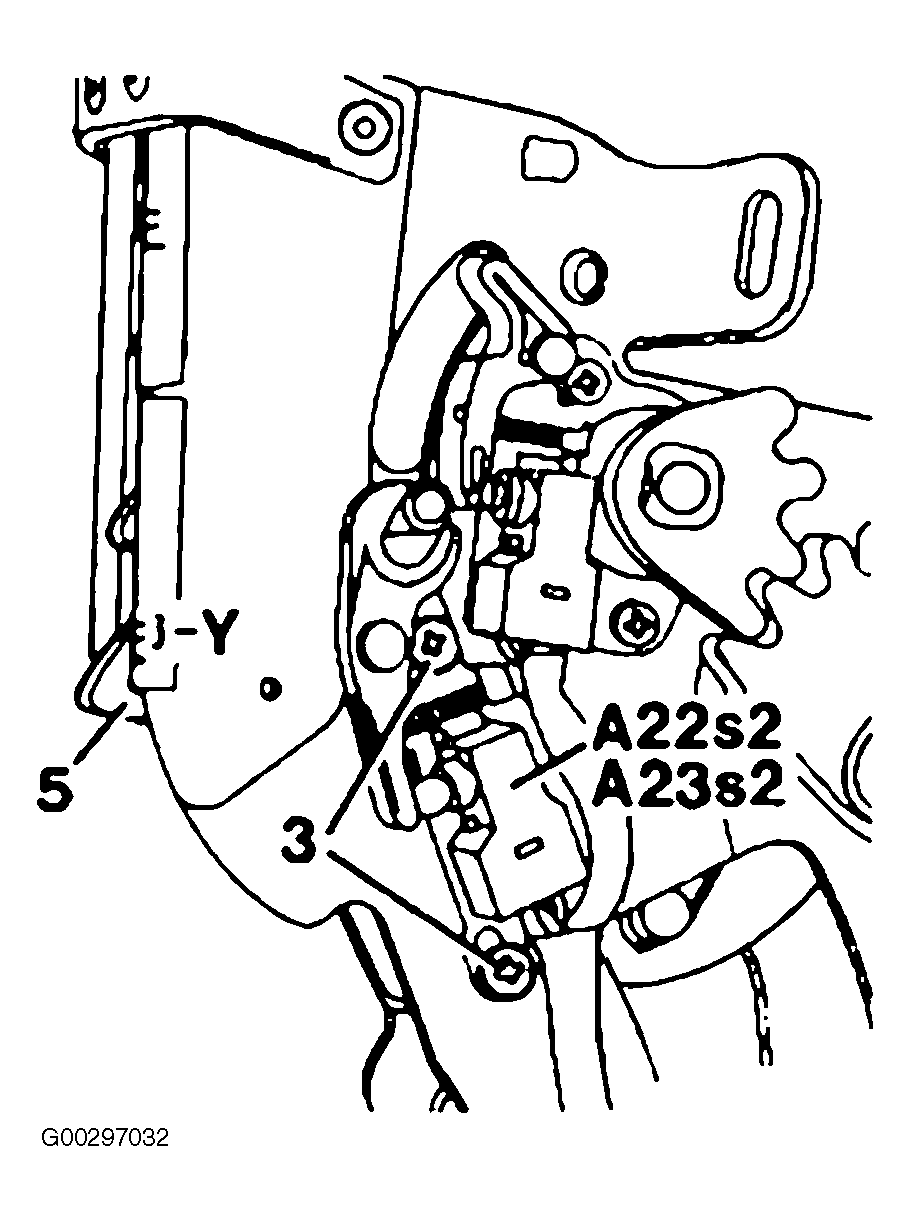

- Release catch, attach multimeter to plug connector (A22x or A23x, pins 3 and 4). Set multimeter to continuity check (acoustic signal). Press catch in LOCK direction with top wrench (vehicle tool kit). Simultaneously press rotating lock (5) upward with thumb to eliminate play. Limit switch (A22s2 or A23s2) should actuate when the upper edge of the rotating lock (5) is in the switching range (Y). If necessary adjust limit switch (A22s2 or A23s2) by sliding in oblong holes. Apply screw-securing agent to screws (3) for limit switch (A22s2 or A23s2). See Fig 4 .
Fig 1: Adjusting Limit Switch With Catches Marked Switching Ranges W, X, Y & Z (Cloth Holding Brace Closed & Locked - 1 Of 4)
Fig 2: Adjusting Limit Switch With Catches Marked Switching Ranges W, X, Y & Z (Cloth Holding Brace Closed & Locked - 2 Of 4)
